Üntel RE-2X(St)H PIMF
Ships within 3–5 business days, subject to prior ex-stock sales.
Technical support available
Custom lengths available on request
SS & IEC certified products

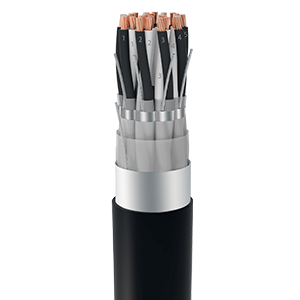

RE-2X(St)H PIMF — Üntel Kablo cable for instrumentation applications.
Dimensions and electrical data
| Conductor size (Class 2) | nom. | mm2 | 0.5 | 0.75 | 1 | 1.3 | 1.5 | 2.5 |
|---|---|---|---|---|---|---|---|---|
| Conductor resistance | max. | Ω/km | 36.7 | 25 | 18.5 | 14.2 | 12.3 | 7.6 |
| Insulation resistance | min. | MΩxkm | 5000 | |||||
| L/R ratio | max. | µH/Ω | 25 | 25 | 25 | 40 | 40 | 60 |
| (*) At 20 °C |
| Cross Sections (mm2) | Nominal Overall Diameter (mm) | Approximate Weight (kg/km) |
|---|---|---|
| 2x2x0,5 | 10.1 | 96 |
| 4x2x0,5 | 11.7 | 145 |
| 8x2x0,5 | 16 | 263 |
| 10x2x0,5 | 18.2 | 325 |
| 12x2x0,5 | 18.8 | 370 |
| 16x2x0,5 | 21.1 | 474 |
| 20x2x0,5 | 23.7 | 583 |
| 24x2x0,5 | 26.4 | 696 |
| 2x2x0,75 | 11.2 | 115 |
| 4x2x0,75 | 13.2 | 184 |
| 5x2x0,75 | 14.4 | 217 |
| 6x2x0,75 | 16 | 260 |
| 8x2x0,75 | 18.1 | 322 |
| 10x2x0,75 | 20.6 | 410 |
| 12x2x0,75 | 21.3 | 468 |
| 16x2x0,75 | 24 | 528 |
| 20x2x0,75 | 26.8 | 741 |
| 24x2x0,75 | 30 | 884 |
| 2x2x1 | 11.6 | 126 |
| 4x2x1 | 13.7 | 204 |
| 5x2x1 | 15 | 242 |
| 6x2x1 | 16.5 | 290 |
| 8x2x1 | 18.7 | 372 |
| 10x2x1 | 21.4 | 488 |
| 12x2x1 | 22.1 | 526 |
| 16x2x1 | 24.7 | 678 |
| 20x2x1 | 27.8 | 836 |
| 24x2x1 | 31 | 998 |
| 2x2x1,3 | 12.5 | 150 |
| 4x2x1,3 | 14.5 | 237 |
| 5x2x1,3 | 16.1 | 291 |
| 6x2x1,3 | 17.6 | 340 |
| 8x2x1,3 | 20 | 438 |
| 10x2x1,3 | 23 | 543 |
| 12x2x1,3 | 23.8 | 635 |
| 16x2x1,3 | 26.7 | 820 |
| 20x2x1,3 | 30 | 1010 |
| 24x2x1,3 | 33.4 | 1205 |
| 2x2x1,5 | 13 | 160 |
| 4x2x1,5 | 15.2 | 262 |
| 5x2x1,5 | 16.6 | 312 |
| 6x2x1,5 | 18.3 | 372 |
| 8x2x1,5 | 20.8 | 481 |
| 10x2x1,5 | 23.8 | 595 |
| 12x2x1,5 | 24.6 | 684 |
| 16x2x1,5 | 27.5 | 883 |
| 20x2x1,5 | 30.9 | 1090 |
| 24x2x1,5 | 34.7 | 1317 |
| 2x2x2,5 | 15.3 | 221 |
| 4x2x2,5 | 18.1 | 370 |
| 5x2x2,5 | 19.8 | 443 |
| 6x2x2,5 | 21.8 | 528 |
| 8x2x2,5 | 24.8 | 684 |
| 10x2x2,5 | 28.4 | 848 |
| 12x2x2,5 | 29.6 | 993 |
| 16x2x2,5 | 33.1 | 1284 |
| 20x2x2,5 | 37.4 | 1602 |
| 24x2x2,5 | 41.7 | 1910 |
Manufactured by Üntel Kablo. Supplied and held in Singapore for delivery across ASEAN by Everwell Cables & Electrical (S.E.A.) Pte Ltd. Contact us for cross-section, drum length, certification and lead time.
