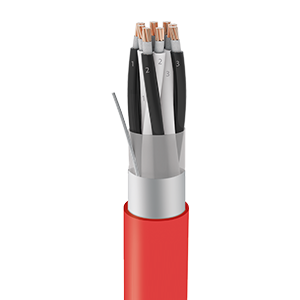

Üntel RE-2X(St)H..CI
Ships within 3–5 business days, subject to prior ex-stock sales.
Technical support available
Custom lengths available on request
SS & IEC certified products
RE-2X(St)H..CI — Üntel Kablo cable for instrumentation applications.
Dimensions and electrical data
| Conductor size (Class 2) | nom. | mm2 | 0.5 | 0.75 | 1 | 1.3 | 1.5 | 2.5 |
|---|---|---|---|---|---|---|---|---|
| Conductor resistance | max. | Ω/km | 36.7 | 25 | 18.5 | 14.2 | 12.3 | 7.6 |
| Insulation resistance | min. | MΩxkm | 5000 | |||||
| L/R ratio | max. | µH/Ω | 25 | 25 | 25 | 40 | 40 | 60 |
| (*) At 20 °C |
| Cross Sections (mm2) | Nominal Overall Diameter (mm) | Approximate Weight (kg/km) |
|---|---|---|
| 1x2x0,5 | 7.1 | 54 |
| 2x2x0,5 | 10.4 | 92 |
| 6x2x0,5 | 14.6 | 190 |
| 8x2x0,5 | 16.5 | 245 |
| 10x2x0,5 | 18.9 | 300 |
| 12x2x0,5 | 19.5 | 340 |
| 16x2x0,5 | 21.8 | 432 |
| 20x2x0,5 | 24.5 | 530 |
| 24x2x0,5 | 27.4 | 635 |
| 1x2x0,75 | 7.5 | 60 |
| 2x2x0,75 | 11.1 | 107 |
| 4x2x0,75 | 13.1 | 168 |
| 5x2x0,75 | 14.3 | 197 |
| 6x2x0,75 | 15.7 | 235 |
| 8x2x0,75 | 17.9 | 302 |
| 10x2x0,75 | 20.2 | 362 |
| 12x2x0,75 | 21.1 | 420 |
| 16x2x0,75 | 23.6 | 540 |
| 20x2x0,75 | 26.5 | 665 |
| 24x2x0,75 | 29.5 | 790 |
| 1x2x1 | 7.7 | 68 |
| 2x2x1 | 11.4 | 117 |
| 4x2x1 | 13.5 | 187 |
| 5x2x1 | 14.7 | 220 |
| 6x2x1 | 16.2 | 264 |
| 8x2x1 | 18.4 | 340 |
| 10x2x1 | 21.1 | 420 |
| 12x2x1 | 21.8 | 480 |
| 16x2x1 | 24.4 | 615 |
| 20x2x1 | 27.4 | 760 |
| 24x2x1 | 30.5 | 905 |
| 1x2x1,3 | 8.2 | 76 |
| 2x2x1,3 | 12.2 | 135 |
| 4x2x1,3 | 14.5 | 220 |
| 5x2x1,3 | 16 | 270 |
| 6x2x1,3 | 17.5 | 315 |
| 8x2x1,3 | 19.8 | 405 |
| 10x2x1,3 | 22.7 | 500 |
| 12x2x1,3 | 23.7 | 584 |
| 16x2x1,3 | 26.5 | 750 |
| 20x2x1,3 | 29.7 | 925 |
| 24x2x1,3 | 33.2 | 1104 |
| 1x2x1,5 | 8.3 | 80 |
| 2x2x1,5 | 12.6 | 150 |
| 4x2x1,5 | 14.7 | 236 |
| 5x2x1,5 | 16.2 | 290 |
| 6x2x1,5 | 17.9 | 344 |
| 8x2x1,5 | 20.1 | 434 |
| 10x2x1,5 | 23 | 538 |
| 12x2x1,5 | 24 | 630 |
| 16x2x1,5 | 26.9 | 812 |
| 20x2x1,5 | 30.2 | 1000 |
| 24x2x1,5 | 33.7 | 1194 |
| 1x2x2,5 | 9.9 | 115 |
| 2x2x2,5 | 14.9 | 206 |
| 4x2x2,5 | 17.6 | 345 |
| 5x2x2,5 | 19.5 | 424 |
| 6x2x2,5 | 21.6 | 505 |
| 8x2x2,5 | 24.5 | 655 |
| 10x2x2,5 | 28 | 810 |
| 12x2x2,5 | 29.2 | 948 |
| 16x2x2,5 | 32.7 | 1224 |
| 20x2x2,5 | 36.9 | 1528 |
| 24x2x2,5 | 41.2 | 1822 |
Manufactured by Üntel Kablo. Supplied and held in Singapore for delivery across ASEAN by Everwell Cables & Electrical (S.E.A.) Pte Ltd. Contact us for cross-section, drum length, certification and lead time.
