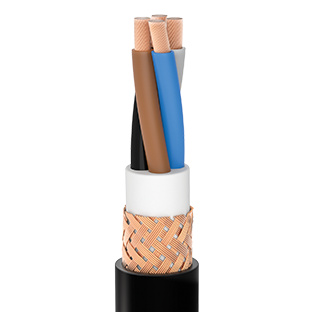

Üntel M2XCH (FI)
Type approvals and certificates
- Available in 66 sizes. See the size table
- Custom lengths cut to order
- Delivered across Southeast Asia
- Need help choosing? Call +65 6747 3336
About Üntel M2XCH (FI)
M2XCH (FI) — Üntel Kablo cable for marine applications.
Manufactured by Üntel Kablo. Supplied and held in Singapore for delivery across ASEAN by Everwell Cables & Electrical (S.E.A.) Pte Ltd. Contact us for cross-section, drum length, certification and lead time.
| Cross Section (m m² ) | Overall Diameter (mm) | Approximate Weight (kg / km) | Min. Bending Radius Fixed Installed (mm) | Max Resistance of Conductors at 200C (ohm / km) | Current Carrying Capacity at 450C (A) |
|---|---|---|---|---|---|
| 2×1 | 10,1 | 157 | 61 | 19,5 | 14 |
| 2×1,5 | 10,5 | 172 | 63 | 13,3 | 18 |
| 2×2,5 | 11,6 | 216 | 70 | 7,98 | 25 |
| 2×4 | 12,6 | 269 | 76 | 4,95 | 35 |
| 2×6 | 14,3 | 367 | 86 | 3,3 | 43 |
| 2×10 | 16,7 | 520 | 101 | 1,91 | 60 |
| 2×16 | 18,7 | 690 | 113 | 1,21 | 79 |
| 2×25 | 23,3 | 1034 | 140 | 0,78 | 104 |
| 2×35 | 25,3 | 1296 | 152 | 0,554 | 129 |
| 2×50 | 28,9 | 1720 | 174 | 0,386 | 166 |
| 2×70 | 33,9 | 2408 | 204 | 0,272 | 204 |
| 2×95 | 37,7 | 3078 | 226 | 0,206 | 243 |
| 2×120 | 41,9 | 3833 | 252 | 0,161 | 282 |
| 2×150 | 46,3 | 4709 | 278 | 0,129 | 324 |
| 2×185 | 51,1 | 5672 | 307 | 0,106 | 367 |
| 2×240 | 58,3 | 7477 | 350 | 0,0801 | 432 |
| 2,24 | 58,3 | 7477 | 350 | 0,0801 | 432 |
| 3×1 | 10,6 | 173 | 64 | 19,5 | 12 |
| 3×1,5 | 11,2 | 200 | 68 | 13,3 | 15 |
| 3×2,5 | 12,2 | 247 | 74 | 7,98 | 21 |
| 3×4 | 13,9 | 350 | 84 | 4,95 | 28 |
| 3×6 | 15,1 | 432 | 91 | 3,3 | 35 |
| 3×10 | 17,6 | 620 | 106 | 1,91 | 50 |
| 3×16 | 20 | 848 | 120 | 1,21 | 66 |
| 3×25 | 24,9 | 1271 | 150 | 0,78 | 86 |
| 3×35 | 26,9 | 1607 | 162 | 0,554 | 107 |
| 3×50 | 30,9 | 2158 | 186 | 0,386 | 137 |
| 3×70 | 36,7 | 3130 | 220 | 0,272 | 168 |
| 3×95 | 40,3 | 3896 | 242 | 0,206 | 201 |
| 3×120 | 45,2 | 4919 | 271 | 0,161 | 233 |
| 3×150 | 49,5 | 5995 | 297 | 0,129 | 268 |
| 3×185 | 55,3 | 7311 | 332 | 0,106 | 303 |
| 3×240 | 62,6 | 9600 | 376 | 0,0801 | 356 |
| 4×1 | 11,5 | 200 | 69 | 19,5 | 12 |
| 4×1,5 | 12 | 226 | 72 | 13,3 | 15 |
| 4×2,5 | 13,1 | 284 | 79 | 7,98 | 21 |
| 4×4 | 14,9 | 403 | 90 | 4,95 | 28 |
| 4×6 | 16,2 | 504 | 97 | 3,3 | 35 |
| 4×10 | 19,3 | 749 | 116 | 1,91 | 50 |
| 4×16 | 21,7 | 1028 | 130 | 1,21 | 66 |
| 4×25 | 27,4 | 1561 | 165 | 0,78 | 86 |
| 4×35 | 29,5 | 1983 | 177 | 0,554 | 107 |
| 4×50 | 34,5 | 2719 | 207 | 0,386 | 137 |
| 4×70 | 40,3 | 3876 | 242 | 0,272 | 168 |
| 4×95 | 45 | 4922 | 270 | 0,206 | 201 |
| 4×120 | 50 | 6162 | 300 | 0,161 | 233 |
| 4×150 | 55,2 | 7581 | 332 | 0,129 | 263 |
| 4×185 | 61,1 | 9160 | 367 | 0,106 | 303 |
| 4×240 | 69,6 | 12122 | 418 | 0,0801 | 356 |
| 5×1 | 12,3 | 228 | 74 | 19,5 | 10 |
| 5×1,5 | 12,8 | 260 | 77 | 13,3 | 13 |
| 5×2,5 | 14,7 | 368 | 88 | 7,98 | 17 |
| 5×4 | 16 | 470 | 96 | 4,95 | 23 |
| 5×6 | 17,7 | 601 | 107 | 3,3 | 29 |
| 5×10 | 20,9 | 887 | 126 | 1,91 | 42 |
| 5×16 | 23,8 | 1232 | 143 | 1,21 | 54 |
| 5×25 | 30,1 | 1879 | 181 | 0,78 | 71 |
| 5×35 | 33,2 | 2453 | 200 | 0,524 | 89 |
| 5×50 | 38,6 | 3398 | 232 | 0,386 | 114 |
| 5×70 | 45,1 | 4769 | 271 | 0,272 | 140 |
| 7×1,5 | 14,2 | 338 | 86 | 13,3 | 11 |
| 7×2,5 | 15,6 | 432 | 94 | 7,98 | 16 |
| 10×1,5 | 17,3 | 463 | 104 | 13,3 | 10 |
| 12×1,5 | 17,8 | 503 | 107 | 13,3 | 10 |
| 14×1,5 | 18,6 | 555 | 112 | 13,3 | 9 |
| 19×1,5 | 20,4 | 666 | 123 | 13,3 | 8 |
| 24×1,5 | 23,5 | 824 | 141 | 13,3 | 8 |
Dimensions and electrical data as published by Üntel Kablo. Ask us to confirm figures for your size and length.
