Üntel L-M2X
Ships within 3–5 business days, subject to prior ex-stock sales.
Technical support available
Custom lengths available on request
SS & IEC certified products

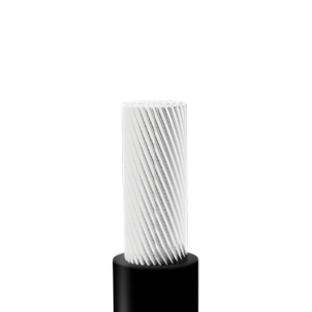

L-M2X — Üntel Kablo cable for marine applications.
Dimensions and electrical data
| Cross Section (m m² ) | Nominal Overall Diameter (mm) | Approximate Weight (kg / km) | Bending Radius Fixed Min. (mm) | Max Resistance of Conductors at 20°C (ohm / km) | Current Carryng Capacity at 45°C (A) |
|---|---|---|---|---|---|
| 1 x 0,50 | 2.1 | 8 | 10 | 40.4 | 11 |
| 1 x 0,75 | 2.3 | 11 | 10 | 26 | 13 |
| 1 x 2,5 | 3.2 | 28 | 13 | 7.98 | 29 |
Manufactured by Üntel Kablo. Supplied and held in Singapore for delivery across ASEAN by Everwell Cables & Electrical (S.E.A.) Pte Ltd. Contact us for cross-section, drum length, certification and lead time.
