Üntel FMGCCH
Ships within 3–5 business days, subject to prior ex-stock sales.
Technical support available
Custom lengths available on request
SS & IEC certified products

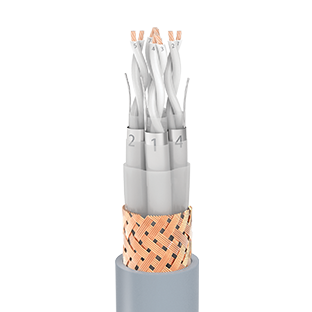

FMGCCH — Üntel Kablo cable for marine applications.
Dimensions and electrical data
| Nominal Cross-Section (mm²) | Cable Outer Diameter (mm) | Approximate Cable Weight (kg/km) | Copper Weight (kg/km) |
|---|---|---|---|
| 1x2x0.50 | 8.0 | 80 | 40.1 |
| 1x4x0.50 | 9.1 | 120 | 55.7 |
| 1x2x0.75 | 8.5 | 90 | 45.9 |
| 1x4x0.75 | 10.0 | 135 | 66.3 |
| 2x2x0.75 | 11.5 | 180 | 85.8 |
| 4x2x0.75 | 14.5 | 240 | 130.6 |
| 7x2x0.75 | 18.0 | 385 | 202.3 |
| 10x2x0.75 | 22.2 | 535 | 304 |
| 14x2x0.75 | 25.5 | 630 | 429.6 |
| 19x2x0.75 | 27.0 | 900 | 541.1 |
| 24x2x0.75 | 30.5 | 1010 | 668.6 |
Manufactured by Üntel Kablo. Supplied and held in Singapore for delivery across ASEAN by Everwell Cables & Electrical (S.E.A.) Pte Ltd. Contact us for cross-section, drum length, certification and lead time.
