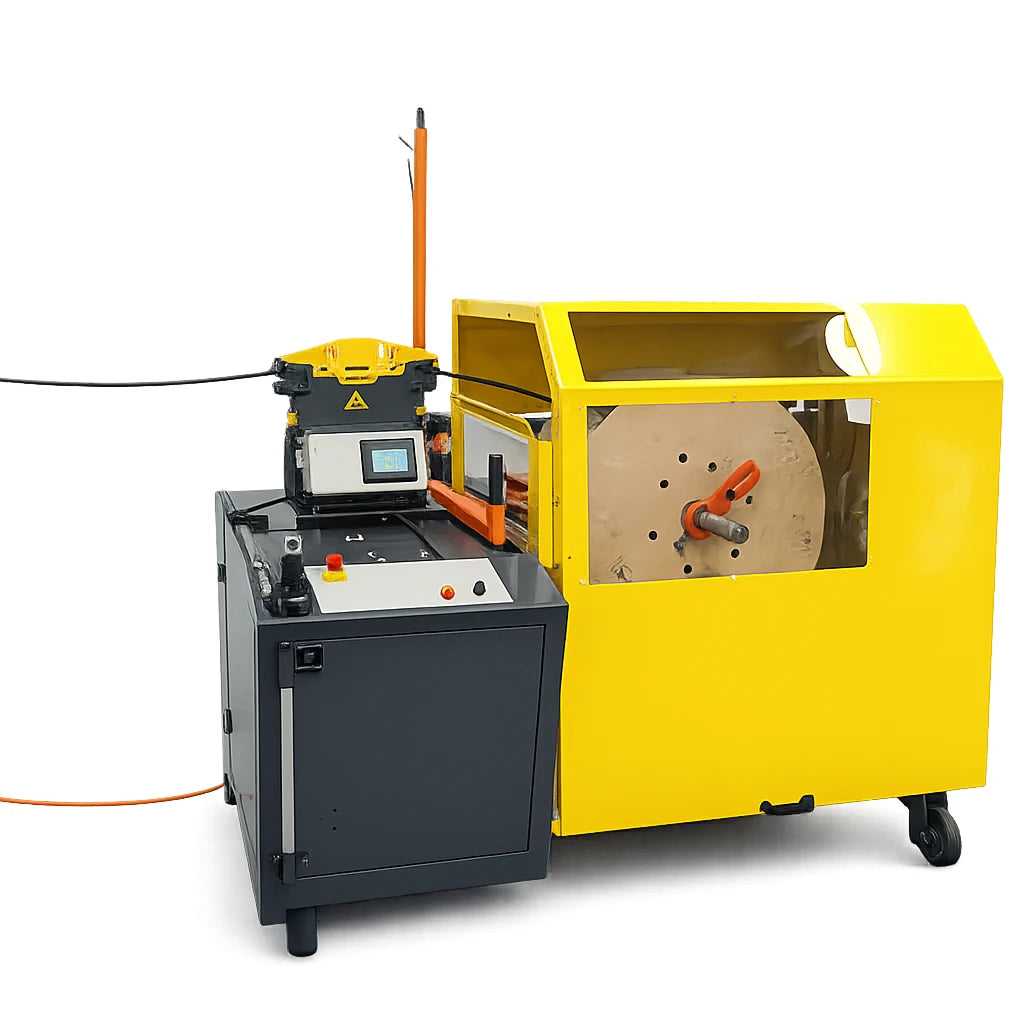

Loimex DTR80 — for making coils and filling reels from 800mm Ø and 400 Kg
- Delivered across Southeast Asia
- Need help choosing? Call +65 6747 3336
About Loimex DTR80 — for making coils and filling reels from 800mm Ø and 400 Kg
DTR80 — electrical coiler for making coils and filling reels from 800mm Ø and 400 Kg.
Technical specification
| Ø mm minimum | 400 |
|---|---|
| Ø mm maximum | 800 |
| Maximum width mm | 620 |
| Maximum weight | 400 kg |
| Ø axle | 50 mm |
| Power kW (HP) | 1,1 Kw |
| Speed ( R.P.M.) | 15-80 r.p.m. |
| Voltage (V / Hz) | 230V 50-60Hz |
| Torque Nm. | 221Nm |
| Fusing | 1x16A |
| Coiling device included | RD80 ↗ |
| Transport wheel | Yes |
| Measuring head | M40 |
| Mechanical counter type M410 | M410 ↗ |
| Manual hydraulic lifting | Yes |
| Hydraulic cylinder lift | Optional |
| Protection according to EC regulations | Yes |
| (L x W x H) cage closed | 1.806x1.583x1.955 mm |
| (L x W x H) cage opened | 1.806x1.583x2.224 mm |
| Weight Kg | 450 kg (992 lb) |
Manufactured by Loimex. Supplied and serviced in Singapore and across ASEAN by Everwell Cables & Electrical (S.E.A.) Pte Ltd. Contact us for specification advice, lead time and pricing.
