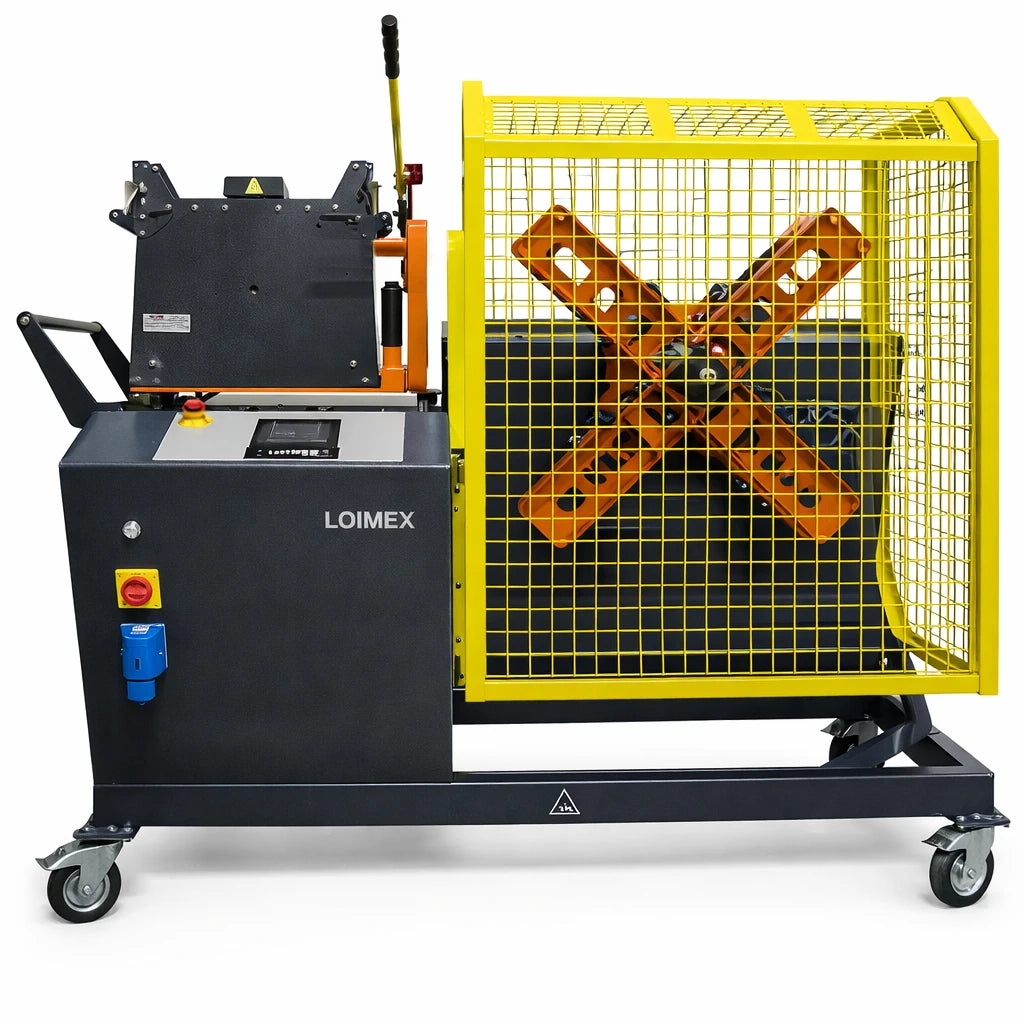

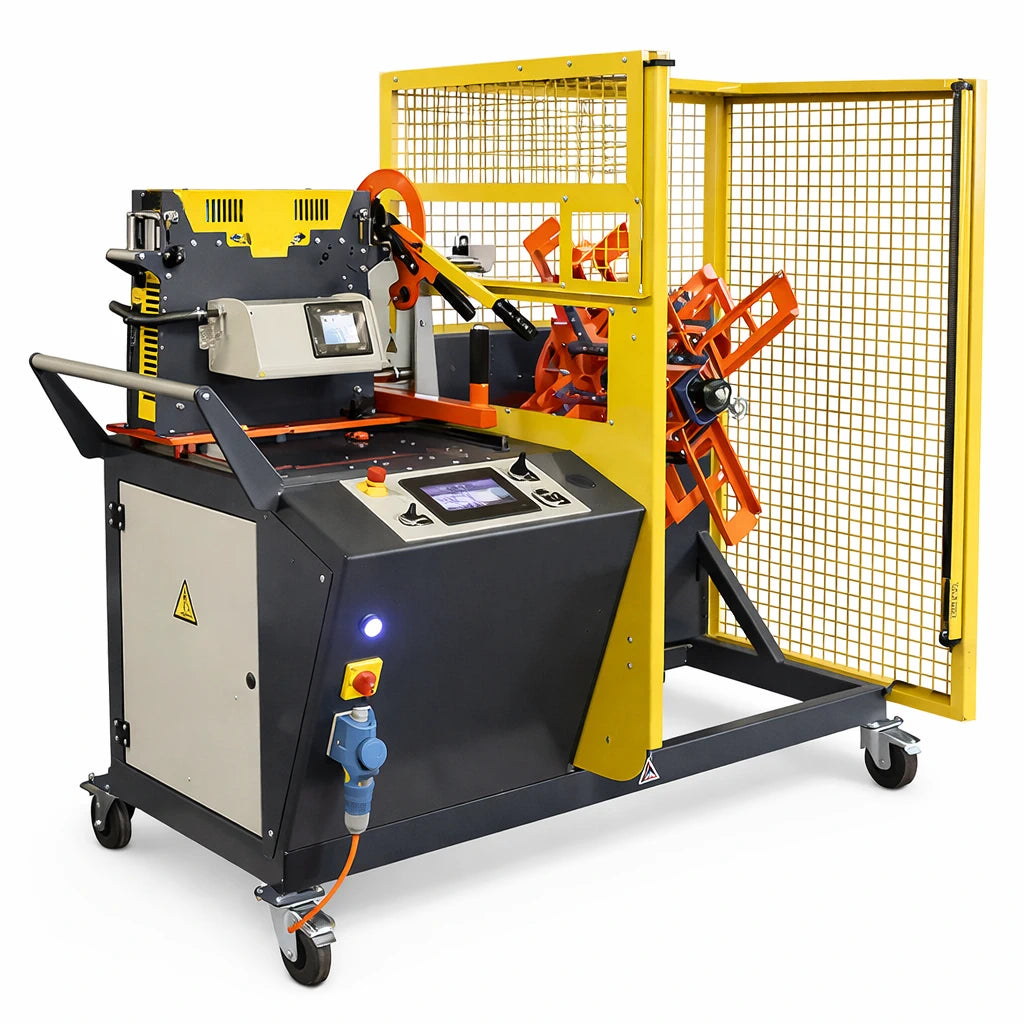

Loimex D30 — for making coils of cables from 1 to 40 mm Ø
Ships within 3–5 business days, subject to prior ex-stock sales.
Technical support available
Custom lengths available on request
SS & IEC certified products
D30 — electrical coiler for making coils of cables from 1 to 40 mm Ø.
Technical specification
| Manual distribution tray cable | Yes |
|---|---|
| Transport wheel | Yes |
| Measuring head | M40 ↗ |
| Mechanical counter type M410 | Yes |
| Ø exterior mm | 800 |
| Ø maximum core mm | 420 |
| Ø minimum core mm | 350 |
| width mm | 200 |
| Maximum weight kg. | 150 |
| Ø exterior mm | 800 |
| width mm | 350 |
| Maximum weight kg. | 200 |
| Speed ( R.P.M.) | 15-80 (<200) |
| Power kW (HP) | 1,1(1,5) |
| Torque Nm. | 221 |
| Voltage (V / Hz) | 230/50-60 ( opt 220III V ) |
| Fusing | 1x16 A |
Manufactured by Loimex. Supplied and serviced in Singapore and across ASEAN by Everwell Cables & Electrical (S.E.A.) Pte Ltd. Contact us for specification advice, lead time and pricing.
