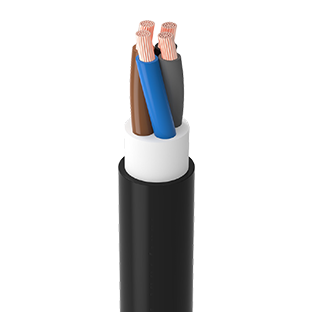

Üntel YVV (NYY) FLEX
Type approvals and certificates
- Available in 98 sizes. See the size table
- Custom lengths cut to order
- Delivered across Southeast Asia
- Need help choosing? Call +65 6747 3336
About Üntel YVV (NYY) FLEX
YVV (NYY) FLEX — Üntel Kablo cable for industrial applications.
Manufactured by Üntel Kablo. Supplied and held in Singapore for delivery across ASEAN by Everwell Cables & Electrical (S.E.A.) Pte Ltd. Contact us for cross-section, drum length, certification and lead time.
| Cross Section (mm²) | Nominal Overall Diameter (mm) | Approximate Weight | (kg / km) | Min.Bending Radius | (fixed installation) (mm) | Max. Resistance of Conductors | at 20°C (ohm / km) |
|---|---|---|---|---|
| 1×1,5 | 5,90 | 50 | 47 | 13,30 |
| 1×2,5 | 6,40 | 65 | 51 | 7,98 |
| 1×4 | 7,30 | 90 | 58 | 4,95 |
| 1×6 | 7,80 | 110 | 62 | 3,30 |
| 1×10 | 8,90 | 160 | 71 | 1,91 |
| 1×16 | 9,90 | 216 | 79 | 1,21 |
| 1×25 | 12,00 | 320 | 96 | 0,78 |
| 1×35 | 12,90 | 415 | 103 | 0,554 |
| 1×50 | 14,80 | 563 | 118 | 0,386 |
| 1×70 | 16,90 | 786 | 135 | 0,272 |
| 1×95 | 19,10 | 1015 | 153 | 0,206 |
| 1×120 | 20,80 | 1262 | 166 | 0,161 |
| 1×150 | 22,80 | 1557 | 182 | 0,129 |
| 1×185 | 25,30 | 1890 | 202 | 0,106 |
| 1×240 | 28,80 | 2520 | 230 | 0,0801 |
| 1×300 | 31,80 | 3096 | 254 | 0,0641 |
| 1×400 | 36,90 | 4040 | 295 | 0,0486 |
| 1×500 | 40,00 | 5275 | 320 | 0,0384 |
| 1×630 | 43,40 | 6696 | 347 | 0,0287 |
| 2×1,5 | 11,80 | 195 | 94 | 13,30 |
| 2×2,5 | 12,70 | 236 | 102 | 7,98 |
| 2×4 | 14,60 | 325 | 117 | 4,95 |
| 2×6 | 15,60 | 386 | 125 | 3,30 |
| 2×10 | 17,80 | 535 | 142 | 1,91 |
| 2×16 | 19,80 | 706 | 158 | 1,21 |
| 2×25 | 24,00 | 1045 | 192 | 0,78 |
| 3×1,5 | 12,30 | 220 | 98 | 13,30 |
| 3×2,5 | 15,30 | 270 | 122 | 7,98 |
| 3×4 | 16,40 | 375 | 131 | 4,95 |
| 3×6 | 16,40 | 455 | 131 | 3,30 |
| 3×10 | 18,80 | 640 | 150 | 1,91 |
| 3×16 | 20,90 | 860 | 167 | 1,21 |
| 3×25 | 25,40 | 1270 | 203 | 0,78 |
| 3×35 | 27,40 | 1610 | 219 | 0,554 |
| 3×50 | 32,20 | 2237 | 258 | 0,386 |
| 3×70 | 36,50 | 3047 | 292 | 0,272 |
| 3×95 | 41,20 | 3921 | 330 | 0,206 |
| 3×120 | 45,50 | 4901 | 364 | 0,161 |
| 3×150 | 49,80 | 6000 | 398 | 0,129 |
| 3×185 | 55,30 | 7311 | 442 | 0,106 |
| 3×240 | 63,00 | 9691 | 504 | 0,0801 |
| 3×16+10 | 22,70 | 1020 | 182 | 1,21 |
| 3×25+16 | 27,70 | 1526 | 222 | 0,78 |
| 3×35+16 | 30,00 | 1900 | 240 | 0,554 |
| 3×50+25 | 35,40 | 2660 | 283 | 0,386 |
| 3×70+35 | 40,10 | 3616 | 321 | 0,272 |
| 3×95+50 | 45,70 | 4726 | 366 | 0,206 |
| 3×120+70 | 50,30 | 2930 | 402 | 0,161 |
| 3×150+70 | 55,00 | 7150 | 440 | 0,129 |
| 3×185+95 | 61,00 | 8740 | 488 | 0,106 |
| 3×240+120 | 69,40 | 11526 | 555 | 0,0801 |
| 3×300+150 | 77,00 | 14235 | 616 | 0,0641 |
| 4×1,5 | 13,20 | 256 | 106 | 13,30 |
| 4×2,5 | 14,20 | 315 | 114 | 7,98 |
| 4×4 | 16,50 | 445 | 132 | 4,95 |
| 4×6 | 17,70 | 550 | 142 | 3,30 |
| 4×10 | 20,40 | 780 | 163 | 1,91 |
| 4×16 | 22,80 | 1060 | 182 | 1,21 |
| 4×25 | 28,10 | 1595 | 225 | 0,78 |
| 4×35 | 30,30 | 2030 | 242 | 0,554 |
| 4×50 | 35,70 | 2831 | 286 | 0,386 |
| 4×70 | 40,70 | 4890 | 326 | 0,272 |
| 4×95 | 46,10 | 5033 | 369 | 0,206 |
| 4×120 | 50,60 | 6250 | 405 | 0,161 |
| 4×150 | 55,80 | 7722 | 446 | 0,129 |
| 4×185 | 61,80 | 9370 | 494 | 0,106 |
| 4×240 | 70,50 | 12460 | 564 | 0,0801 |
| 5×1,5 | 14,10 | 295 | 113 | 13,30 |
| 5×2,5 | 15,30 | 370 | 122 | 7,98 |
| 5×4 | 17,90 | 530 | 143 | 4,95 |
| 5×6 | 19,20 | 651 | 154 | 3,30 |
| 5×10 | 22,20 | 936 | 178 | 1,91 |
| 5×16 | 25,00 | 1291 | 200 | 1,21 |
| 5×25 | 31,50 | 2997 | 252 | 0,78 |
| 5×35 | 33,90 | 2535 | 271 | 0,554 |
| 7×1,5 | 14,90 | 345 | 119 | 13,30 |
| 7×2,5 | 16,30 | 440 | 130 | 7,98 |
| 7×4 | 19,10 | 635 | 153 | 4,95 |
| 7×6 | 20,60 | 795 | 165 | 3,30 |
| 7×10 | 23,90 | 1160 | 191 | 1,91 |
| 10×1,5 | 18,00 | 510 | 144 | 13,30 |
| 10×2,5 | 19,80 | 595 | 158 | 7,98 |
| 12×1,5 | 18,50 | 510 | 148 | 13,30 |
| 12×2,5 | 20,40 | 665 | 163 | 7,98 |
| 14×1,5 | 19,30 | 565 | 154 | 13,30 |
| 14×2,5 | 21,30 | 741 | 170 | 7,98 |
| 16×1,5 | 20,20 | 617 | 162 | 13,30 |
| 16×2,5 | 22,30 | 830 | 178 | 7,98 |
| 19×1,5 | 21,10 | 700 | 169 | 13,30 |
| 19×2,5 | 23,40 | 930 | 187 | 7,98 |
| 21×1,5 | 22,20 | 815 | 178 | 13,30 |
| 21×2,5 | 24,60 | 1085 | 197 | 7,98 |
| 24×1,5 | 24,20 | 861 | 194 | 13,30 |
| 24×2,5 | 26,90 | 1155 | 215 | 7,98 |
| 30×1,5 | 25,50 | 1007 | 204 | 13,30 |
| 30×2,5 | 28,60 | 1375 | 229 | 7,98 |
| 40×1,5 | 28,60 | 1340 | 229 | 13,30 |
| 40×2,5 | 32,50 | 1875 | 260 | 7,98 |
Dimensions and electrical data as published by Üntel Kablo. Ask us to confirm figures for your size and length.
