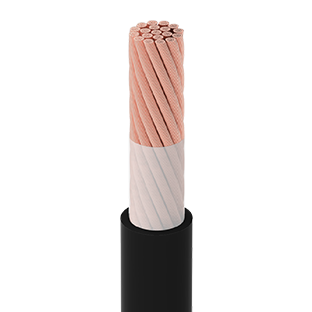

Üntel H01N2-D
- Custom lengths cut to order
- Delivered across Southeast Asia
- Need help choosing? Call +65 6747 3336
About Üntel H01N2-D
H01N2-D — Üntel Kablo cable for industrial applications.
Manufactured by Üntel Kablo. Supplied and held in Singapore for delivery across ASEAN by Everwell Cables & Electrical (S.E.A.) Pte Ltd. Contact us for cross-section, drum length, certification and lead time.
| Cross Section (mm²) | Nominal Overall Diameter (mm) | Approximate Weight (kg / km) | Min.Bending Radius (free movement) (mm) | Max. Resistance of Conductors at 20°C (ohm / km) |
|---|---|---|---|---|
| 1×10 | 8,30 | 137 | 33 | 1,91 |
| 1×16 | 9,40 | 197 | 38 | 1,21 |
| 1×25 | 10,90 | 279 | 44 | 0,780 |
| 1×35 | 12,10 | 369 | 61 | 0,554 |
| 1×50 | 14,20 | 515 | 71 | 0,386 |
| 1×70 | 16,30 | 712 | 82 | 0,272 |
| 1×95 | 18,40 | 916 | 92 | 0,206 |
| 1×120 | 20,40 | 1169 | 122 | 0,161 |
| 1×150 | 22,20 | 1453 | 133 | 0,129 |
| 1×185 | 24,90 | 1802 | 149 | 0,106 |
| 1×240 | 27,80 | 2327 | 167 | 0,0801 |
Dimensions and electrical data as published by Üntel Kablo. Ask us to confirm figures for your size and length.
