Üntel UNTRAIN 3GKW M
Ships within 3–5 business days, subject to prior ex-stock sales.
Technical support available
Custom lengths available on request
SS & IEC certified products

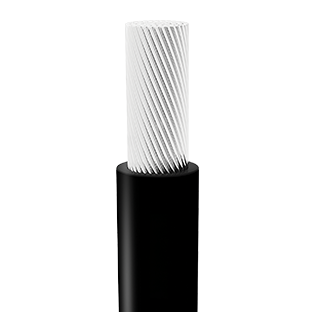

UNTRAIN 3GKW M — Üntel Kablo cable for industrial applications.
Dimensions and electrical data
| Cores x size No. x mm² | Cable Overal Diameter (Approx). (mm) | Cable Weight Approx. kg/km |
|---|---|---|
| 1 x 1,0 | 2,4 – 2,8 | 15 |
| 1 x 1,5 | 2,8 – 3,3 | 23 |
| 1 x 6,0 | 4,2 – 5,0 | 61 |
| 1 x 10 | 5,1 – 5,9 | 100 |
| 1 x 16 | 6,1 – 7,2 | 151 |
| 1 x 25 | 7,8 – 9,1 | 244 |
| 1 x 35 | 9,0 – 10,6 | 335 |
| 1 x 70 | 12,5 – 14,6 | 660 |
| 1 x 95 | 14,0 – 16,5 | 855 |
Manufactured by Üntel Kablo. Supplied and held in Singapore for delivery across ASEAN by Everwell Cables & Electrical (S.E.A.) Pte Ltd. Contact us for cross-section, drum length, certification and lead time.
