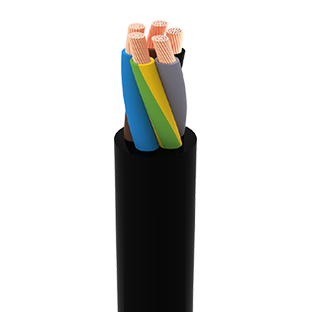

Üntel SUPREMEFLEX H07RN-F
- Available in 84 sizes. See the size table
- Custom lengths cut to order
- Delivered across Southeast Asia
- Need help choosing? Call +65 6747 3336
About Üntel SUPREMEFLEX H07RN-F
SUPREMEFLEX H07RN-F — Üntel Kablo cable for industrial applications.
Manufactured by Üntel Kablo. Supplied and held in Singapore for delivery across ASEAN by Everwell Cables & Electrical (S.E.A.) Pte Ltd. Contact us for cross-section, drum length, certification and lead time.
| Cross Sections (mm2) | Nominal Overall Diameter (mm) | Approximate Weight (kg/km) | Min,Bending Radius (free movement) (mm) | Max, Resistance of Conductors at 200C (ohm / km) |
|---|---|---|---|---|
| 1×1,5 | 6,00 | 50 | 24 | 13,30 |
| 1×2,5 | 6,40 | 63 | 26 | 7,98 |
| 1×4 | 7,30 | 85 | 29 | 4,95 |
| 1×6 | 8,10 | 111 | 32 | 3,30 |
| 1×10 | 10,20 | 179 | 41 | 1,91 |
| 1×16 | 11,00 | 238 | 44 | 1,21 |
| 1×25 | 13,80 | 365 | 69 | 0,78 |
| 1×35 | 15,30 | 475 | 77 | 0,554 |
| 1×50 | 17,80 | 657 | 89 | 0,386 |
| 1×70 | 19,40 | 864 | 97 | 0,272 |
| 1×95 | 22,10 | 1118 | 133 | 0,206 |
| 1×120 | 24,40 | 1404 | 146 | 0,161 |
| 1×150 | 16,60 | 1698 | 83 | 0,129 |
| 1×185 | 29,70 | 2100 | 178 | 0,106 |
| 1×240 | 32,60 | 2396 | 196 | 0,0801 |
| 1×300 | 35,60 | 3256 | 214 | 0,0641 |
| 1×400 | 40,90 | 4377 | 245 | 0,0486 |
| 1×500 | 45,60 | 5632 | 274 | 0,0384 |
| 1×630 | 49,30 | 6975 | 296 | 0,0287 |
| 2×1 | 8,40 | 94 | 34 | 19,50 |
| 2×1,5 | 9,30 | 117 | 37 | 13,30 |
| 2×2,5 | 10,60 | 160 | 42 | 7,98 |
| 2×4 | 12,20 | 221 | 61 | 4,95 |
| 2×6 | 13,60 | 288 | 68 | 3,30 |
| 2×10 | 19,20 | 555 | 96 | 1,91 |
| 2×16 | 21,00 | 717 | 126 | 1,21 |
| 2×25 | 26,70 | 1124 | 160 | 0,78 |
| 2×35 | 29,40 | 1421 | 176 | 0,554 |
| 2×50 | 34,40 | 1968 | 206 | 0,386 |
| 2×70 | 38,30 | 2564 | 230 | 0,272 |
| 2×95 | 43,70 | 3330 | 262 | 0,206 |
| 3×1 | 9,10 | 114 | 36 | 19,50 |
| 3×1,5 | 9,90 | 140 | 40 | 13,30 |
| 3×2,5 | 11,40 | 196 | 46 | 7,98 |
| 3×4 | 13,10 | 273 | 66 | 4,95 |
| 3×6 | 14,60 | 358 | 73 | 3,30 |
| 3×10 | 20,60 | 682 | 124 | 1,91 |
| 3×16 | 22,50 | 892 | 135 | 1,21 |
| 3×25 | 28,60 | 1390 | 172 | 0,78 |
| 3×35 | 31,70 | 1789 | 190 | 0,554 |
| 3×50 | 37,00 | 2474 | 222 | 0,386 |
| 3×70 | 40,90 | 3231 | 245 | 0,272 |
| 3×95 | 46,90 | 4220 | 281 | 0,206 |
| 3×120 | 51,60 | 5248 | 310 | 0,161 |
| 3×150 | 56,20 | 6319 | 337 | 0,129 |
| 3×185 | 62,30 | 7806 | 374 | 0,106 |
| 3×240 | 69,50 | 9963 | 417 | 0,0801 |
| 3×300 | 76,70 | 11894 | 460 | 0,0641 |
| 3×2,5+1,5 | 12,30 | 229 | 62 | 7,98 |
| 3×4+2,5 | 14,00 | 316 | 70 | 4,95 |
| 3×6+4 | 15,80 | 425 | 79 | 3,30 |
| 3×10+6 | 22,40 | 810 | 134 | 1,91 |
| 3×16+10 | 24,60 | 1070 | 148 | 1,21 |
| 3×25+16 | 31,40 | 1687 | 188 | 0,78 |
| 3×35+16 | 34,60 | 2114 | 208 | 0,554 |
| 3×50+25 | 40,60 | 2945 | 244 | 0,386 |
| 3×70+35 | 44,50 | 3820 | 267 | 0,272 |
| 3×95+50 | 51,00 | 5008 | 306 | 0,206 |
| 3×120+70 | 56,00 | 6267 | 336 | 0,161 |
| 3×150+70 | 60,90 | 7432 | 365 | 0,129 |
| 3×185+95 | 68,40 | 9296 | 410 | 0,106 |
| 3×240+120 | 76,50 | 11881 | 459 | 0,0801 |
| 3×300+150 | 84,40 | 14580 | 506 | 0,0641 |
| 4×1 | 10,10 | 143 | 40 | 19,50 |
| 4×1,5 | 11,00 | 175 | 44 | 13,30 |
| 4×2,5 | 12,60 | 244 | 63 | 7,98 |
| 4×4 | 14,50 | 342 | 73 | 4,95 |
| 4×6 | 16,30 | 456 | 82 | 3,30 |
| 4×10 | 22,60 | 845 | 136 | 1,91 |
| 4×16 | 24,70 | 1114 | 148 | 1,21 |
| 4×25 | 31,80 | 1760 | 191 | 0,78 |
| 4×35 | 35,20 | 2265 | 211 | 0,554 |
| 4×50 | 41,10 | 3136 | 247 | 0,386 |
| 4×70 | 45,00 | 4098 | 270 | 0,272 |
| 4×95 | 52,00 | 5393 | 312 | 0,206 |
| 4×120 | 56,80 | 6657 | 341 | 0,161 |
| 4×150 | 62,20 | 8067 | 373 | 0,129 |
| 4×185 | 69,70 | 10030 | 418 | 0,106 |
| 4×240 | 77,60 | 12786 | 466 | 0,0801 |
| 4×300 | 85,80 | 15799 | 515 | 0,0641 |
| 5×1 | 11,10 | 170 | 44 | 19,50 |
| 5×1,5 | 12,10 | 208 | 61 | 13,30 |
| 5×2,5 | 13,80 | 290 | 69 | 7,98 |
| 5×4 | 16,10 | 415 | 81 | 4,95 |
| 5×6 | 18,10 | 554 | 91 | 3,30 |
| 5×10 | 24,90 | 1033 | 149 | 1,91 |
| 5×16 | 27,40 | 1377 | 164 | 1,21 |
| 5×25 | 35,40 | 2183 | 212 | 0,78 |
| 5×35 | 38,90 | 2788 | 233 | 0,554 |
| 5×50 | 45,80 | 3902 | 275 | 0,386 |
| 5×70 | 50,20 | 5113 | 301 | 0,272 |
| 5×95 | 57,80 | 6693 | 347 | 0,206 |
| 6×1,5 | 14,40 | 289 | 72 | 13,30 |
| 6×2,5 | 16,20 | 1123 | 81 | 7,98 |
| 6×4 | 18,70 | 551 | 94 | 4,95 |
| 7×1,5 | 15,40 | 337 | 77 | 13,30 |
| 7×2,5 | 17,50 | 463 | 88 | 7,98 |
| 7×4 | 20,70 | 670 | 124 | 4,95 |
| 12×1,5 | 18,70 | 486 | 94 | 13,30 |
| 12×2,5 | 21,20 | 669 | 127 | 7,98 |
| 12×4 | 24,90 | 969 | 149 | 4,95 |
| 18×1,5 | 22,00 | 690 | 132 | 13,30 |
| 18×2,5 | 25,00 | 964 | 150 | 7,98 |
| 18×4 | 29,50 | 1407 | 177 | 4,95 |
| 24×1,5 | 25,70 | 894 | 154 | 13,30 |
| 24×2,5 | 29,40 | 1263 | 176 | 7,98 |
| 36×1,5 | 29,40 | 1245 | 176 | 13,30 |
| 36×2,5 | 33,80 | 1781 | 203 | 7,98 |
Dimensions and electrical data as published by Üntel Kablo. Ask us to confirm figures for your size and length.
