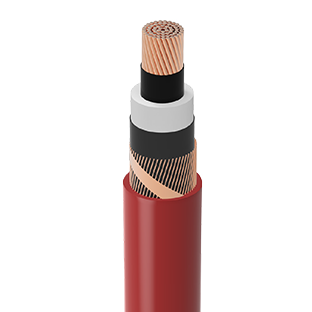

Üntel RG7H1R / RG7H1OR

Custom lengths cut to order
Delivered across Southeast Asia
Need help choosing? Call +65 6747 3336

About Üntel RG7H1R / RG7H1OR

RG7H1R / RG7H1OR — Üntel Kablo cable for industrial applications.

Manufactured by Üntel Kablo. Supplied and held in Singapore for delivery across ASEAN by Everwell Cables & Electrical (S.E.A.) Pte Ltd. Contact us for cross-section, drum length, certification and lead time.

PDF Üntel RG7H1R / RG7H1OR datasheet

Cross Section (mm²)	Nominal Overall Diameter (mm)	Approximate Weight \| (kg / km)	Min.Bending Radius \| (fixed installation) (mm)	Max. Resistance of Conductors \| at 20°C (ohm / km)
3,6/6 kV
1×25/16	21,00	745	315	0,727
1×70/16	25,10	1220	377	0,268
1×95/16	26,10	1501	392	0,193
1×120/16	27,80	1756	417	0,153
1×150/25	30,50	2167	458	0,124
1×185/25	32,50	2572	488	0,0991
1×240/25	35,00	3131	525	0,074
1×300/25	37,80	3810	567	0,0601
1×400/35	41,50	4840	623	0,0470
1×500/35	45,40	5911	681	0,0366
3×25/16	43,90	2865	527	0,727
3×35/16	46,90	3341	563	0,524
3×50/16	50,00	3985	600	0,387
3×70/16	53,80	4885	646	0,268
3×95/16	58,10	5980	697	0,193
3×120/16	61,50	6970	738	0,153
3×150/25	66,50	8350	798	0,124
3×185/25	71,40	9920	857	0,0991
3×240/25	76,70	12056	920	0,074
3×300/25	82,80	14595	994	0,0601
3×400/35	90,90	18175	1091	0,0470
6/10 kV
1×25/16	21,80	775	327	0,727
1×35/16	23,10	886	347	0,524
1×50/16	24,40	1045	366	0,387
1×70/16	25,90	1255	389	0,268
1×95/16	27,90	1541	419	0,193
1×120/16	29,40	1800	441	0,153
1×150/25	31,30	2212	470	0,124
1×185/25	33,50	2625	503	0,0991
1×240/25	36,00	3210	540	0,074
1×300/25	38,60	3865	579	0,0601
1×400/35	42,50	4932	638	0,047
1×500/35	45,80	5956	687	0,0366
3×25/16	45,90	3070	551	0,727
3×35/16	48,90	3560	587	0,524
3×50/16	51,90	4200	623	0,387
3×70/16	55,70	5115	668	0,268
3×95/16	59,80	6201	718	0,193
3×120/16	63,40	7235	761	0,153
3×150/25	68,20	8601	818	0,124
3×185/25	73,30	10225	880	0,0991
3×240/25	78,70	12406	944	0,074
3×300/25	84,50	14910	1014	0,0601
3×400/35	93,00	18621	1116	0,0470
8,7/15 kV
1×25/16	24,2	880	363	0,727
1×35/16	25,5	995	383	0,524
1×50/16	27	1175	405	0,387
1×70/16	28,3	1377	425	0,268
1×95/16	30,3	1671	455	0,193
1×120/16	31,8	1935	477	0,153
1×150/25	33,7	2360	506	0,124
1×185/25	35,9	2793	539	0,0991
1×240/25	38,2	3350	573	0,074
1×300/25	41	4045	615	0,0601
1×400/35	45,6	5143	684	0,0470
1×500/35	48,9	6182	734	0,0366
3×25/16	50,8	3596	610	0,727
3×35/16	54,4	4205	653	0,524
3×50/16	57,4	4885	689	0,387
3×70/16	60,9	5795	731	0,268
3×95/16	65	6930	780	0,193
3×120/16	68,4	7970	821	0,153
3×150/25	73,7	9485	884	0,124
3×185/25	78,3	11066	940	0,0991
3×240/25	83,6	13285	1003	0,074
3×300/25	89,6	15891	1075	0,0601
12/20 kV
1×25/16	26,20	971	393	0,727
1×35/16	27,70	1110	416	0,524
1×50/16	29,00	1275	435	0,387
1×70/16	30,50	1500	458	0,268
1×95/16	32,30	1785	485	0,193
1×120/16	34,00	2071	510	0,153
1×150/25	35,90	2502	539	0,124
1×185/25	37,90	2930	569	0,0991
1×240/25	40,40	3512	606	0,074
1×300/25	43,20	4220	648	0,0601
1×400/35	47,60	5311	714	0,047
1×500/35	50,90	6362	764	0,0366
3×35/16	58,90	7080	707	0,527
3×50/16	62,00	7950	744	0,387
3×70/16	65,40	9045	785	0,268
3×95/16	69,70	10451	836	0,193
3×120/16	73,50	11775	882	0,153
3×150/25	78,30	15420	940	0,124
3×185/25	83,00	17425	996	0,074
3×240/25	88,30	20115	1060	0,0601
3×300/25	94,80	23386	1138	0,047

Dimensions and electrical data as published by Üntel Kablo. Ask us to confirm figures for your size and length.
