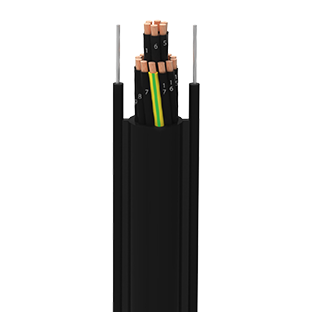

Üntel PENDANT
Type approvals and certificates
- Custom lengths cut to order
- Delivered across Southeast Asia
- Need help choosing? Call +65 6747 3336
About Üntel PENDANT
PENDANT — Üntel Kablo cable for industrial applications.
Manufactured by Üntel Kablo. Supplied and held in Singapore for delivery across ASEAN by Everwell Cables & Electrical (S.E.A.) Pte Ltd. Contact us for cross-section, drum length, certification and lead time.
| Cross Section (mm²) | Nominal Overall Diameter (mm) | Approximate Weight | (kg / km) | Min.Bending Radius | (free movement) (mm) | Max. Resistance of Conductors | at 20°C (ohm / km) |
|---|---|---|---|---|
| 5×1,5 | 10,50 x 20,00 | 255 | 105 | 1,91 |
| 6×1,5 | 11,20 x 21,00 | 275 | 112 | 1,21 |
| 8×1,5 | 13,50 x 22,50 | 335 | 135 | 0,780 |
| 10×1,5 | 14,50 x 23,00 | 380 | 145 | 0,554 |
| 12×1,5 | 15,00 x 23,50 | 415 | 150 | 0,386 |
| 14×1,5 | 15,50 x 24,50 | 455 | 155 | 0,272 |
| 16×1,5 | 16,00 x 25,00 | 495 | 160 | 0,206 |
| 20×1,5 | 17,50 x 27,50 | 610 | 175 | 0,161 |
| 24×1,5 | 19,50 x 29,50 | 645 | 195 | 0,129 |
Dimensions and electrical data as published by Üntel Kablo. Ask us to confirm figures for your size and length.
