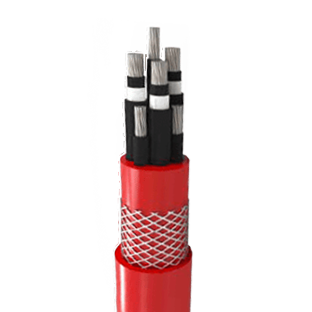

Üntel NTSCGEWÖU
Type approvals and certificates
- Available in 6 sizes. See the size table
- Custom lengths cut to order
- Delivered across Southeast Asia
- Need help choosing? Call +65 6747 3336
About Üntel NTSCGEWÖU
NTSCGEWÖU — Üntel Kablo cable for mining, tunneling, defense applications.
Manufactured by Üntel Kablo. Supplied and held in Singapore for delivery across ASEAN by Everwell Cables & Electrical (S.E.A.) Pte Ltd. Contact us for cross-section, drum length, certification and lead time.
| Cross Sectlon (mm2) | Overall Dlameter Mln-Max (mm) | Approxlmate welght (kg/km) |
|---|---|---|
| 3,6/6 kV | ||
| 3 x 25 + 3 x 25/3 | 41.8 – 45.0 | 2530 |
| 3 x 70 + 3 x 35/3 | 52.6 – 55.6 | 4400 |
| 3 x 95 + 3 x 50/3 | 55.7 – 58.8 | 5630 |
| 3 x 120 + 3 x 70/3 | 59.6 – 65.9 | 6200 |
| 6/10 kV | ||
| 3 x 25 + 3 x 25/3 | 43.6 – 48.1 | 2600 |
| 3 x 35 + 3 x 25/3 | 45.6 – 50.4 | 2980 |
| 3 x 50 + 3 x 25/3 | 48.3 – 51.4 | 3720 |
| 3 x 70 + 3 x 35/3 | 53.4 – 59.1 | 4510 |
| 3 x 95 + 3 x 50/3 | 57.1 – 63.2 | 5720 |
| 3 x 120 + 3 x 70/3 | 63.0 – 69.7 | 6300 |
| 8,7/15 kV | ||
| 3 x 25 + 3 x 25/3 | 48.1 – 53.2 | 3675 |
| 3 x 35 + 3 x 25/3 | 51.8 – 57.3 | 4415 |
| 3 x 50 + 3 x 25/3 | 55.5 – 61.4 | 5135 |
| 3 x 70 + 3 x 35/3 | 58.0 – 64.1 | 6005 |
| 3 x 95 + 3 x 50/3 | 63.4 – 70.1 | 7200 |
| 3 x 120 + 3 x 70/3 | 67.5 – 74.6 | 8700 |
| 12/20 kV | ||
| 3 x 25 + 3 x 25/3 | 51.1 – 55.3 | 4460 |
| 3 x 35 + 3 x 25/3 | 54.0 – 58.2 | 4990 |
| 3 x 50 + 3 x 25/3 | 59.4 – 63.6 | 5740 |
| 3 x 70 + 3 x 35/3 | 64.2 – 68.4 | 6950 |
| 3 x 95 + 3 x 50/3 | 69.6 – 73.8 | 7870 |
| 3 x 120 + 3 x 70/3 | 73.60 – 77.8 | 9425 |
| 18/30 kV | ||
| 3 x 25 + 3 x 25/3 | 66.0 – 72.8 | 6360 |
| 3 x 35 + 3 x 25/3 | 68.0 – 75.0 | 6925 |
| 3 x 50 + 3 x 25/3 | 71.6 – 79.1 | 7800 |
| 3 x 70 + 3 x 35/3 | 75.8 – 83.7 | 9140 |
| 3 x 95 + 3 x 50/3 | 79.4 – 87.7 | 10100 |
| 3 x 120 + 3 x 70/3 | 85.3 – 94.2 | 12260 |
| 20/35 kV | ||
| 3 x 35 + 3 x 25/3 | 75.7 – 83.6 | 8400 |
| 3 x 50 + 3 x 25/3 | 79.5 – 87.8 | 9360 |
| 3 x 70 + 3 x 35/3 | 82.0 – 90.6 | 10400 |
| 3 x 95 + 3 x 50/3 | 87.3 – 96.4 | 11770 |
| 3 x 120 + 3 x 70/3 | 91.4 – 101.1 | 13680 |
Dimensions and electrical data as published by Üntel Kablo. Ask us to confirm figures for your size and length.
