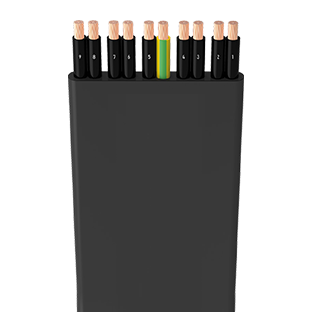

Üntel NGFLGÖU
Ships within 3–5 business days, subject to prior ex-stock sales.
Technical support available
Custom lengths available on request
SS & IEC certified products
NGFLGÖU — Üntel Kablo cable for industrial applications.
Dimensions and electrical data
| Cross Section (mm²) | Nominal Overall Diameter (mm) | Approximate Weight | (kg / km) | Min.Bending Radius | (free movement) (mm) | Max. Resistance of Conductors | at 20°C (ohm / km) |
|---|---|---|---|---|
| 3×1,5 | 6,00 x 12,30 | 126 | 18 | 13,30 |
| 3×2,5 | 7,80 x 14,40 | 181 | 23 | 7,98 |
| 3×10 | 10,60 x 27,00 | 619 | 42 | 1,91 |
| 3×16 | 12,40 x 27,00 | 797 | 62 | 1,21 |
| 3×25 | 14,00 x 36,70 | 1224 | 70 | 0,78 |
| 3×35 | 15,70 x 39,90 | 1610 | 79 | 0,554 |
| 3×50 | 18,00 x 46,20 | 2193 | 90 | 0,386 |
| 3×70 | 20,50 x 52,50 | 2998 | 103 | 0,272 |
| 3×95 | 23,30 x 60,10 | 3822 | 117 | 0,206 |
| 4×1,5 | 6,00 x 17,30 | 204 | 18 | 13,30 |
| 4×2,5 | 7,80 x 20,00 | 310 | 23 | 7,98 |
| 4×4 | 8,60 x 24,50 | 427 | 34 | 4,95 |
| 4×6 | 9,40 x 27,00 | 505 | 38 | 3,30 |
| 4×10 | 10,60 x 31,60 | 752 | 42 | 1,91 |
| 4×16 | 12,40 x 36,00 | 1018 | 62 | 1,21 |
| 4×25 | 14,00 x 45,00 | 1522 | 70 | 0,78 |
| 4×35 | 15,70 x 50,30 | 2196 | 79 | 0,554 |
| 4×50 | 18,00 x 57,50 | 2852 | 90 | 0,386 |
| 4×70 | 20,50 x 64,80 | 3872 | 103 | 0,272 |
| 4×95 | 23,30 x 74,60 | 4977 | 117 | 0,206 |
| 4×120 | 25,60 x 82,80 | 6197 | 128 | 0,161 |
| 5×1,5 | 6,00 x 21,40 | 267 | 18 | 13,30 |
| 5×2,5 | 7,80 x 24,40 | 378 | 23 | 7,98 |
| 5×4 | 8,60 x 29,50 | 505 | 34 | 4,95 |
| 5×6 | 9,40 x 34,00 | 652 | 38 | 3,30 |
| 5×10 | 10,60 x 40,50 | 904 | 42 | 1,91 |
| 5×16 | 12,40 x 47,00 | 1301 | 62 | 1,21 |
| 5×25 | 14,60 x 57,80 | 1993 | 70 | 0,78 |
| 5×35 | 15,70 x 61,30 | 2537 | 79 | 0,554 |
| 7×1,5 | 6,00 x 26,90 | 306 | 18 | 13,30 |
| 7×2,5 | 7,80 x 32,10 | 493 | 23 | 7,98 |
| 7×4 | 8,60 x 38,80 | 691 | 34 | 4,95 |
| 7×6 | 9,40 x 45,80 | 870 | 38 | 3,30 |
| 7×10 | 10,60 x 53,10 | 1239 | 42 | 1,91 |
| 7×16 | 13,00 x 65,00 | 1950 | 65 | 1,21 |
| 7×25 | 15,20 x 77,00 | 2865 | 76 | 0,78 |
| 7×35 | 16,30 x 87,10 | 3647 | 82 | 0,554 |
| 8×1,5 | 6,00 x 31,00 | 378 | 18 | 13,30 |
| 8×2,5 | 7,80 x 37,50 | 492 | 23 | 7,98 |
| 10×1,5 | 6,60 x 39,20 | 504 | 20 | 13,30 |
| 10×2,5 | 8,40 x 47,60 | 719 | 34 | 7,98 |
| 12×1,5 | 6,60 x 47,50 | 624 | 20 | 13,30 |
| 12×2,5 | 8,40 x 54,20 | 849 | 34 | 7,98 |
| 16×1,5 | 6,60 x 62,40 | 812 | 20 | 13,30 |
| 16×2,5 | 8,40 x 71,80 | 1101 | 34 | 7,98 |
| 24×1,5 | 11,90 x 54,70 | 1366 | 48 | 13,30 |
| 24×2,5 | 15,00 x 65,00 | 2116 | 60 | 7,98 |
Manufactured by Üntel Kablo. Supplied and held in Singapore for delivery across ASEAN by Everwell Cables & Electrical (S.E.A.) Pte Ltd. Contact us for cross-section, drum length, certification and lead time.
