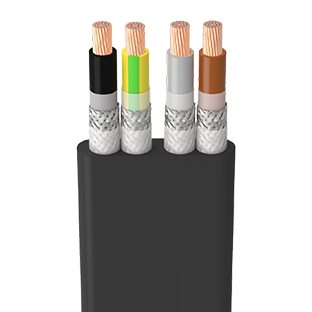

Üntel NGFLCGÖU
Ships within 3–5 business days, subject to prior ex-stock sales.
Technical support available
Custom lengths available on request
SS & IEC certified products
NGFLCGÖU — Üntel Kablo cable for industrial applications.
Dimensions and electrical data
| Cross Section (mm²) | Nominal Overall Diameter (mm) | Approximate Weight | (kg / km) | Min.Bending Radius | (free movement) (mm) | Max. Resistance of Conductors | at 20°C (ohm / km) |
|---|---|---|---|---|
| 3×1,5 | 6,80 x 16,60 | 217 | 20 | 13,30 |
| 3×2,5 | 8,10 x 18,00 | 310 | 32 | 7,98 |
| 3×10 | 11,70 x 30,00 | 724 | 47 | 1,91 |
| 3×16 | 13,50 x 36,40 | 1122 | 68 | 1,21 |
| 3×25 | 15,00 x 41,10 | 1550 | 75 | 0,78 |
| 3×35 | 16,00 x 43,90 | 1867 | 80 | 0,554 |
| 3×50 | 19,50 x 50,20 | 2433 | 98 | 0,386 |
| 3×70 | 21,50 x 56,50 | 3261 | 108 | 0,272 |
| 3×95 | 24,10 x 64,10 | 4170 | 121 | 0,206 |
| 4×1,5 | 6,80 x 20,40 | 290 | 20 | 13,30 |
| 4×2,5 | 8,10 x 23,10 | 422 | 32 | 7,98 |
| 4×4 | 9,20 x 26,70 | 498 | 37 | 4,95 |
| 4×6 | 10,00 x 32,10 | 677 | 40 | 3,30 |
| 4×10 | 11,70 x 35,60 | 952 | 47 | 1,91 |
| 4×16 | 13,50 x 44,10 | 1341 | 68 | 1,21 |
| 4×25 | 15,00 x 54,00 | 2004 | 75 | 0,78 |
| 4×35 | 16,00 x 56,00 | 2470 | 80 | 0,554 |
| 4×50 | 19,50 x 63,50 | 3130 | 98 | 0,386 |
| 4×70 | 21,50 x 73,80 | 4588 | 108 | 0,272 |
| 4×95 | 24,10 x 79,20 | 5206 | 121 | 0,206 |
| 4×120 | 27,80 x 91,40 | 7246 | 139 | 0,161 |
| 5×1,5 | 6,80 x 27,20 | 357 | 20 | 13,30 |
| 5×2,5 | 8,10 x 31,30 | 503 | 32 | 7,98 |
| 5×4 | 9,20 x 35,80 | 700 | 37 | 4,95 |
| 5×6 | 10,00 x 41,00 | 3698 | 40 | 3,30 |
| 5×10 | 11,70 x 46,30 | 1211 | 47 | 1,91 |
| 5×16 | 13,50 x 52,00 | 1616 | 68 | 1,21 |
| 5×25 | 15,60 x 62,10 | 2365 | 75 | 0,78 |
| 5×35 | 16,00 x 67,10 | 2881 | 80 | 0,554 |
| 7×1,5 | 6,80 x 32,10 | 501 | 20 | 13,30 |
| 7×2,5 | 8,10 x 40,10 | 646 | 32 | 7,98 |
| 7×4 | 9,20 x 46,50 | 902 | 37 | 4,95 |
| 7×6 | 10,00 x 52,00 | 1223 | 40 | 3,30 |
| 7×10 | 11,70 x 58,60 | 1501 | 47 | 1,91 |
| 7×16 | 14,10 x 68,30 | 2184 | 71 | 1,21 |
| 7×25 | 15,60 x 89,00 | 3381 | 78 | 0,78 |
| 7×35 | 16,60 x 95,00 | 4236 | 83 | 0,554 |
| 8×1,5 | 6,80 x 38,70 | 571 | 20 | 13,30 |
| 8×2,5 | 8,10 x 47,80 | 772 | 32 | 7,98 |
| 10×1,5 | 7,40 x 48,90 | 742 | 22 | 13,30 |
| 10×2,5 | 8,70 x 58,60 | 910 | 35 | 7,98 |
| 12×1,5 | 7,40 x 53,00 | 870 | 22 | 13,30 |
| 12×2,5 | 8,70 x 68,50 | 1098 | 35 | 7,98 |
| 16×1,5 | 7,40 x 69,00 | 1027 | 22 | 13,30 |
| 16×2,5 | 8,70 x 79,60 | 1455 | 35 | 7,98 |
| 24×1,5 | 12,60 x 67,60 | 1514 | 63 | 13,30 |
| 24×2,5 | 15,00 x 76,00 | 2075 | 75 | 7.98 |
Manufactured by Üntel Kablo. Supplied and held in Singapore for delivery across ASEAN by Everwell Cables & Electrical (S.E.A.) Pte Ltd. Contact us for cross-section, drum length, certification and lead time.
