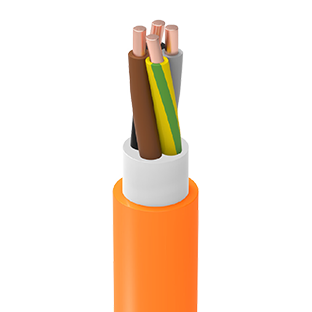

Üntel (N)HXH FE180 PH120 (N)HXH FE180 E30-E90
Ships within 3–5 business days, subject to prior ex-stock sales.
Technical support available
Custom lengths available on request
SS & IEC certified products
(N)HXH FE180 PH120 (N)HXH FE180 E30-E90 — Üntel Kablo cable for industrial applications.
Dimensions and electrical data
| Cross Section (mm²) | Nominal Overall Diameter (mm) | Approximate Weight | (kg / km) | Min.Bending Radius | (fixed installation) (mm) | Max. Resistance of Conductors | at 20°C (ohm / km) |
|---|---|---|---|---|
| 1×1,5 | 6,20 | 57 | 93 | 12,10 |
| 1×2,5 | 6,60 | 71 | 99 | 7,41 |
| 1×10 | 8,40 | 160 | 126 | 1,83 |
| 1×16 | 10,20 | 240 | 153 | 1,15 |
| 1×25 | 11,70 | 345 | 176 | 0,73 |
| 1×35 | 12,80 | 450 | 192 | 0,524 |
| 1×50 | 14,30 | 590 | 215 | 0,387 |
| 1×70 | 16,10 | 810 | 242 | 0,268 |
| 1×95 | 18,50 | 1090 | 278 | 0,193 |
| 1×120 | 19,60 | 1318 | 294 | 0,153 |
| 1×150 | 21,80 | 2025 | 327 | 0,124 |
| 1×185 | 24,00 | 2030 | 360 | 0,0991 |
| 1×240 | 27,20 | 2650 | 408 | 0,0754 |
| 1×300 | 29,60 | 3165 | 444 | 0,00601 |
| 2×1,5 | 11,00 | 178 | 132 | 12,10 |
| 2×2,5 | 11,80 | 215 | 142 | 7,41 |
| 2×4 | 12,80 | 275 | 154 | 4,61 |
| 2×6 | 13,80 | 340 | 166 | 3,08 |
| 2×10 | 15,40 | 460 | 185 | 1,83 |
| 2×16 | 19,00 | 710 | 228 | 1,15 |
| 2×25 | 22,00 | 1010 | 264 | 0,73 |
| 2×35 | 24,20 | 1285 | 290 | 0,524 |
| 2×50 | 28,00 | 1740 | 336 | 0,387 |
| 2×70 | 31,50 | 2350 | 378 | 0,268 |
| 2×95 | 36,20 | 3130 | 434 | 0,193 |
| 3×1,5 | 9,40 | 143 | 113 | 12,10 |
| 3×2,5 | 10,40 | 190 | 125 | 7,41 |
| 3×4 | 11,70 | 258 | 140 | 4,61 |
| 3×6 | 13,00 | 340 | 156 | 3,08 |
| 3×10 | 15,70 | 522 | 188 | 1.83 |
| 3×16 | 21,50 | 902 | 258 | 1,15 |
| 3×25 | 24,70 | 1290 | 296 | 0,73 |
| 3×35 | 27,30 | 1657 | 328 | 0,524 |
| 3×50 | 29,80 | 1664 | 358 | 0,387 |
| 3×70 | 33,90 | 2990 | 407 | 0,268 |
| 3×95 | 38,90 | 4000 | 467 | 0,193 |
| 3×120 | 41,50 | 4800 | 498 | 0,153 |
| 3×150 | 46,00 | 5980 | 552 | 0,124 |
| 3×185 | 50,70 | 7360 | 608 | 0,0991 |
| 3×240 | 57,60 | 9600 | 691 | 0,0754 |
| 3×35+16 | 28,30 | 1837 | 340 | 0,524 |
| 3×50+25 | 31,40 | 2407 | 377 | 0,387 |
| 3×70+35 | 35,80 | 3282 | 430 | 0,268 |
| 3×95+50 | 41,10 | 4450 | 493 | 0,193 |
| 3×120+70 | 45,40 | 5585 | 545 | 0,153 |
| 3×150+70 | 48,80 | 6577 | 586 | 0,124 |
| 3×185+95 | 54,40 | 8298 | 653 | 0,0991 |
| 3×240+120 | 60,40 | 10560 | 725 | 0,0754 |
| 4×1,5 | 10,20 | 172 | 122 | 12,10 |
| 4×2,5 | 11,20 | 226 | 134 | 7,41 |
| 4×4 | 12,60 | 312 | 151 | 4,61 |
| 4×6 | 14,50 | 430 | 174 | 3,08 |
| 4×10 | 17,40 | 663 | 209 | 1,83 |
| 4×16 | 23,80 | 1146 | 286 | 1,15 |
| 4×25 | 26,70 | 1594 | 320 | 0,73 |
| 4×35 | 29,50 | 2054 | 354 | 0,524 |
| 4×50 | 32,90 | 2681 | 395 | 0,387 |
| 4×70 | 38,10 | 3721 | 457 | 0,268 |
| 4×95 | 43,00 | 4984 | 516 | 0,193 |
| 4×120 | 47,30 | 6161 | 568 | 0,153 |
| 4×150 | 52,00 | 7500 | 624 | 0,124 |
| 4×185 | 56,50 | 9440 | 678 | 0,0991 |
| 4×240 | 64,10 | 12350 | 769 | 0,0754 |
| 5×1,5 | 11,10 | 205 | 133 | 12,10 |
| 5×2,5 | 12,40 | 276 | 149 | 7,41 |
| 5×4 | 13,90 | 382 | 167 | 4,61 |
| 5×6 | 16,00 | 528 | 192 | 3,08 |
| 5×10 | 19,20 | 812 | 230 | 1,83 |
| 5×16 | 25,70 | 1373 | 308 | 1,15 |
| 5×25 | 29,00 | 1928 | 348 | 0,73 |
| 5×35 | 32,20 | 2505 | 386 | 0,524 |
| 5×50 | 36,10 | 3283 | 433 | 0,387 |
| 5×70 | 42,30 | 4620 | 508 | 0,268 |
| 5×95 | 47,60 | 6164 | 571 | 0,193 |
| 5×120 | 52,10 | 7590 | 625 | 0,153 |
| 5×150 | 57,40 | 9295 | 689 | 0,124 |
| 5×185 | 63,70 | 11582 | 764 | 0,0991 |
| 5×240 | 70,90 | 14840 | 851 | 0,0754 |
| 7×1,5 | 12,10 | 248 | 145 | 12,10 |
| 7×2,5 | 13,50 | 338 | 162 | 7,41 |
| 10×1,5 | 15,70 | 410 | 188 | 12,10 |
| 12×1,5 | 16,10 | 443 | 193 | 12,10 |
| 12×2,5 | 18,00 | 605 | 216 | 12,10 |
| 19×1,5 | 19,10 | 637 | 229 | 12,10 |
| 24×1,5 | 22,90 | 892 | 275 | 12,10 |
| 30×1,5 | 24,20 | 1030 | 290 | 12,10 |
Manufactured by Üntel Kablo. Supplied and held in Singapore for delivery across ASEAN by Everwell Cables & Electrical (S.E.A.) Pte Ltd. Contact us for cross-section, drum length, certification and lead time.
