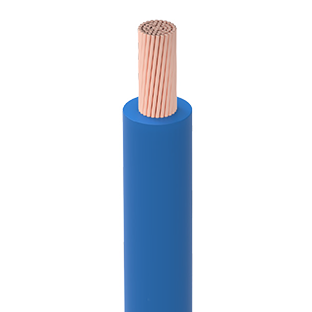

Üntel H05V-K / H07V-K
- Available in 19 sizes. See the size table
- Custom lengths cut to order
- Delivered across Southeast Asia
- Need help choosing? Call +65 6747 3336
About Üntel H05V-K / H07V-K
H05V-K / H07V-K — Üntel Kablo cable for industrial applications.
Manufactured by Üntel Kablo. Supplied and held in Singapore for delivery across ASEAN by Everwell Cables & Electrical (S.E.A.) Pte Ltd. Contact us for cross-section, drum length, certification and lead time.
H05V-K is a CENELEC harmonised code: H = harmonised standard (EN 50525), 05 = rated 300/500 V, V = PVC insulation, K = flexible class 5 conductor for fixed installation.
| Cross Section (mm²) | Nominal Overall Diameter (mm) | Approximate Weight (kg / km) | Min.Bending Radius (fixed installation) (mm) | Max. Resistance of Conductors at 20°C (ohm / km) |
|---|---|---|---|---|
| H05V-K | ||||
| 1×0,50 | 2,10 | 9 | 8 | 39,00 |
| 1×0,75 | 2,30 | 12 | 9 | 26,00 |
| 1×1 | 2,50 | 14 | 10 | 19,50 |
| H07V-K | ||||
| 1×1,5 | 2,90 | 19 | 12 | 13,30 |
| 1×2,5 | 3,55 | 30 | 14 | 7,98 |
| 1×4 | 4,05 | 46 | 16 | 4,95 |
| 1×6 | 4,60 | 63 | 18 | 3,30 |
| 1×10 | 6,10 | 108 | 24 | 1,91 |
| 1×16 | 7,10 | 161 | 28 | 1,21 |
| 1×25 | 9,20 | 250 | 46 | 0,780 |
| 1×35 | 10,10 | 339 | 51 | 0,554 |
| 1×50 | 12,00 | 475 | 60 | 0,386 |
| 1×70 | 13,90 | 678 | 83 | 0,272 |
| 1×95 | 15,90 | 885 | 95 | 0,206 |
| 1×120 | 17,60 | 1118 | 106 | 0,161 |
| 1×150 | 19,40 | 1390 | 116 | 0,129 |
| 1×185 | 21,70 | 1692 | 130 | 0,106 |
| 1×240 | 25,00 | 2280 | 150 | 0,0801 |
| 1×300 | 27,80 | 2819 | 167 | 0,0641 |
Dimensions and electrical data as published by Üntel Kablo. Ask us to confirm figures for your size and length.
