About Üntel FG7OHH2R

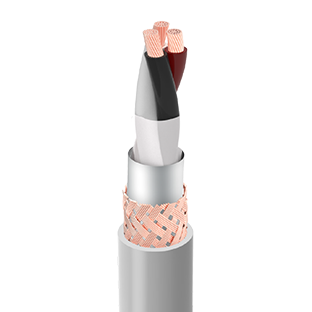

FG7OHH2R — Üntel Kablo cable for industrial applications.
Manufactured by Üntel Kablo. Supplied and held in Singapore for delivery across ASEAN by Everwell Cables & Electrical (S.E.A.) Pte Ltd. Contact us for cross-section, drum length, certification and lead time.
| Cross Section (mm²) | Nominal Overall Diameter (mm) | Approximate Weight | (kg / km) | Min.Bending Radius | (fixed installation) (mm) | Max. Resistance of Conductors | at 20°C (ohm / km) |
|---|---|---|---|---|
| 3×1,5/1,5 | 10,60 | 146 | 85 | 13,30 |
| 3×2,5/2,5 | 11,60 | 191 | 93 | 7,98 |
| 3×4/4 | 12,80 | 265 | 102 | 4,95 |
| 3×6/6 | 14,70 | 356 | 118 | 3,30 |
| 3×10/10 | 17,30 | 545 | 138 | 1,91 |
| 3×16/16 | 19,50 | 780 | 156 | 1,21 |
| 3×25/16 | 25,80 | 1385 | 206 | 0,78 |
| 3×35/16 | 27,70 | 1671 | 222 | 0,554 |
| 3×50/25 | 32,00 | 2350 | 256 | 0,386 |
| 3×70/35 | 37,60 | 3355 | 301 | 0,272 |
| 3×95/50 | 41,40 | 4310 | 331 | 0,206 |
| 3×120/70 | 46,60 | 5530 | 373 | 0,161 |
| 3×150/95 | 51,10 | 6946 | 409 | 0,129 |
| 3×185/95 | 56,80 | 8275 | 454 | 0,106 |
| 3×240/120 | 63,90 | 10755 | 511 | 0,0801 |
Dimensions and electrical data as published by Üntel Kablo. Ask us to confirm figures for your size and length.
