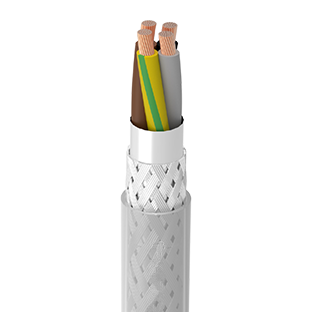

Üntel 2YSLCY-J
- Custom lengths cut to order
- Delivered across Southeast Asia
- Need help choosing? Call +65 6747 3336
About Üntel 2YSLCY-J
2YSLCY-J — Üntel Kablo cable for industrial applications.
Manufactured by Üntel Kablo. Supplied and held in Singapore for delivery across ASEAN by Everwell Cables & Electrical (S.E.A.) Pte Ltd. Contact us for cross-section, drum length, certification and lead time.
| Cross Section (mm²) | Nominal Overall Diameter (mm) | Approximate Weight | (kg / km) | Min.Bending Radius | (fixed installation) (mm) | Max. Resistance of Conductors | at 20°C (ohm / km) |
|---|---|---|---|---|
| 4×1,5 | 10,60 | 155 | 106 | 13,30 |
| 4×2,5 | 12,00 | 212 | 120 | 7,98 |
| 4×4 | 13,20 | 282 | 132 | 4,95 |
| 4×6 | 14,60 | 367 | 146 | 3,30 |
| 4×10 | 17,50 | 556 | 175 | 1,91 |
| 4×16 | 20,30 | 842 | 203 | 1,21 |
| 4×25 | 25,80 | 1313 | 258 | 0,780 |
| 4×35 | 28,30 | 1700 | 283 | 0,554 |
| 4×50 | 32,90 | 2337 | 329 | 0,386 |
| 4×70 | 38,70 | 3365 | 387 | 0,272 |
| 4×95 | 42,80 | 4255 | 428 | 0,206 |
| 4×120 | 47,80 | 5320 | 478 | 0,161 |
| 4×150 | 52,60 | 6385 | 526 | 0,129 |
| 4×185 | 58,50 | 7960 | 585 | 0,106 |
| 3×2,5+3×0,50 | 14,80 | 290 | 148 | 7,98 |
| 3×4+3×0,75 | 13,20 | 295 | 132 | 4,95 |
| 3×6+3×1 | 18,30 | 460 | 183 | 3,30 |
| 3×10+3×1,5 | 18,50 | 565 | 185 | 1,91 |
| 3×16+3×2,5 | 21,50 | 825 | 215 | 1,21 |
| 3×25+3×4 | 23,70 | 1100 | 237 | 0,780 |
| 3×35+3×6 | 26,00 | 1470 | 260 | 0,554 |
| 3×50+3×10 | 30,10 | 2055 | 301 | 0,386 |
| 3×70+3×10 | 34,70 | 2740 | 347 | 0,272 |
| 3×95+3×16 | 38,70 | 3530 | 387 | 0,206 |
| 3×120+3×16 | 43,00 | 4416 | 430 | 0,161 |
| 3×150+3×25 | 47,20 | 5560 | 472 | 0,129 |
| 3×185+3×35 | 52,60 | 6832 | 526 | 0,106 |
| 3×240+3×50 | 59,80 | 9100 | 598 | 0,0801 |
Dimensions and electrical data as published by Üntel Kablo. Ask us to confirm figures for your size and length.
