U/RG7R - U/RG7OR 0,6/1 kV
- Standard
- CEI 20-13 – CEI UNEL 35376
- Flame retardant
- CEI EN 60332-1-2
- Custom lengths cut to order
- Delivered across Southeast Asia
- Need help choosing? Call +65 6747 3336

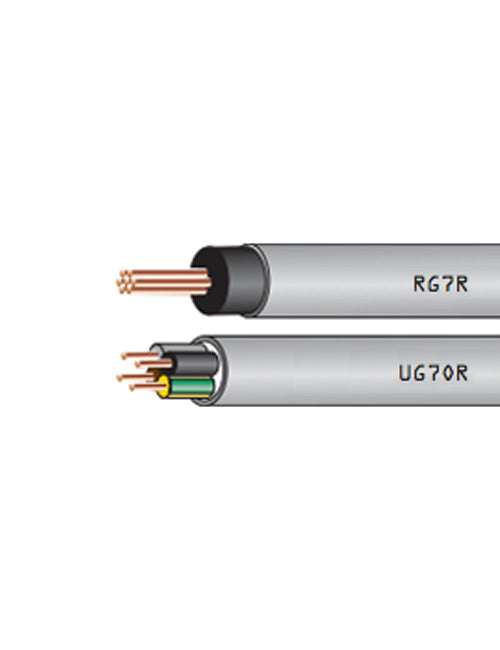

About U/RG7R - U/RG7OR 0,6/1 kV
Power cable insulated with high-quality ethyl-propylene rubber, G7 quality, with PVC sheath, not propagating fire with reduced corrosive gas emission. Conductor Plain copper solid conductor, class 1 (section ≤ 6 mm2) Plain copper stranded wire, class 2 (section ≥ 10 mm2) Insulation Rubber HEPR compound, G7 quality Filler Non-hygroscopic compound (for multi-core cables) Outer Sheath PVC compound, Rz quality Cores Colour HD 308 Standard Sheath Colour Grey
Standards: CEI 20-13, CEI 20-22, EN 50267-2-1, EN 60332-1-2, HD 308
Construction
- Conductor
- Plain copper solid conductor, class 1 (section ≤ 6 mm2) Plain copper stranded wire, class 2 (section ≥ 10 mm2)
- Insulation
- Rubber HEPR compound, G7 quality
- Outer sheath
- PVC compound, Rz quality
Filler: Non-hygroscopic compound (for multi-core cables) - Cores / colour
- Cores: HD 308 Standard
Sheath: Grey
Standards and compliance
- Standard
- CEI 20-13 – CEI UNEL 35376
- Flame retardant
- CEI EN 60332-1-2
- Fire propagation
- CEI 20-22 II
- Gas emission
- CEI EN 50267-2-1
- Low Voltage Directive
- 2014/35/UE
- RoHS Directive
- 2011/65/CE
Application
Power cable insulated with high-quality ethyl-propylene rubber, G7 quality, with PVC sheath, not propagating fire with reduced corrosive gas emission
