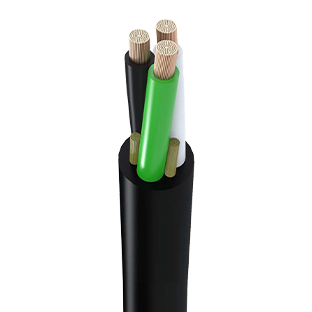

Üntel SJOOW
Ships within 3–5 business days, subject to prior ex-stock sales.
Technical support available
Custom lengths available on request
SS & IEC certified products
SJOOW — Üntel Kablo cable for industrial applications.
Dimensions and electrical data
| Part Number | Number of Cores and Size | No of wire x Diameter of Wire | Nominal Insulation Thickness | Cable Diameter Approx. (Tolerance ±5%) | Cable Weight Approx. | Cable Weight Approx. | ||
|---|---|---|---|---|---|---|---|---|
| No. x..AWG | No. x ..AWG | inches | mm | mm | inches | kg/km | Ibs/MF | |
| UNT18-02SJOOW | 2 x 18AWG | 16 x 30 | 0,03 | 0,76 | 7,4 | 0,291 | 59 | 40 |
| UNT16-02SJOOW | 2 x 16AWG | 26 x 30 | 0,03 | 0,76 | 8 | 0,315 | 73 | 49 |
| UNT16-03SJOOW | 3 x 16AWG | 26 x 30 | 0,03 | 0,76 | 8,5 | 0,335 | 96 | 65 |
| UNT16-04SJOOW | 4 x 16AWG | 26 x 30 | 0,03 | 0,76 | 9,4 | 0,37 | 120 | 80 |
| UNT14-02SJOOW | 2 x 14AWG | 41 x 30 | 0,03 | 0,76 | 8,8 | 0,346 | 96 | 65 |
| UNT14-03SJOOW | 3 x 14AWG | 41 x 30 | 0,03 | 0,76 | 9,4 | 0,37 | 130 | 37 |
| UNT14-04SJOOW | 4 x 14AWG | 41 x 30 | 0,03 | 0,76 | 10,7 | 0,421 | 173 | 116 |
| UNT12-02SJOOW | 2 x 12AWG | 65 x 30 | 0,03 | 0,76 | 10,3 | 0,406 | 140 | 94 |
| UNT12-03SJOOW | 3 x 12AWG | 65 x 30 | 0,03 | 0,76 | 11 | 0,433 | 185 | 124 |
| UNT12-04SJOOW | 4 x 12AWG | 65 x 30 | 0,03 | 0,76 | 12,2 | 0,48 | 240 | 161 |
| UNT10-02SJOOW | 2 x 10AWG | 104 x 30 | 0,045 | 1,14 | 14 | 0,551 | 246 | 165 |
| UNT10-03SJOOW | 3 x 10AWG | 104 x 30 | 0,045 | 1,14 | 15 | 0,591 | 320 | 215 |
| UNT10-04SJOOW | 4 x 10AWG | 104 x 30 | 0,045 | 1,14 | 17 | 0,67 | 425 | 286 |
Manufactured by Üntel Kablo. Supplied and held in Singapore for delivery across ASEAN by Everwell Cables & Electrical (S.E.A.) Pte Ltd. Contact us for cross-section, drum length, certification and lead time.
