Üntel RU(I) (NEK 606 S11)
Ships within 3–5 business days, subject to prior ex-stock sales.
Technical support available
Custom lengths available on request
SS & IEC certified products

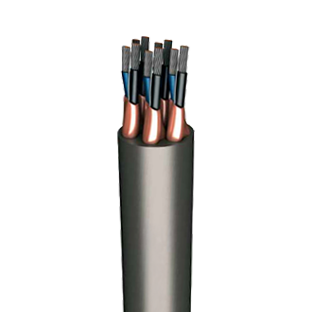

RU(I) (NEK 606 S11) — Üntel Kablo cable for offshore applications.
Dimensions and electrical data
| Nominal Cross-Section (mm²) | Cable Outer Diameter (mm) | Approximate Cable Weight (kg/km) | Copper Weight (kg/km) |
|---|---|---|---|
| 1x2x0.75 | 7.2 | 90 | 20 |
| 2x2x0.75 | 11.2 | 160 | 39 |
| 8x2x0.75 | 19,5 | 450 | 154 |
| 9x2x0.75 | 19.5 | 510 | 173 |
| 10x2x0.75 | 19.5 | 560 | 192 |
| 12x2x0.75 | 21.1 | 650 | 231 |
| 14x2x0.75 | 22,3 | 750 | 269 |
| 16x2x0.75 | 23.7 | 870 | 308 |
| 19x2x0.75 | 25.0 | 990 | 365 |
| 24x2x0.75 | 28.2 | 1,260 | 461 |
| 1x3x0.75 | 7.6 | 110 | 27 |
| 2x3x0.75 | 12.5 | 190 | 53 |
| 4x3x0.75 | 14,7 | 380 | 106 |
| 7x3x0.75 | 17.7 | 580 | 185 |
| 8x3x0.75 | 21.9 | 680 | 212 |
| 9x3x0.75 | 21.9 | 770 | 238 |
| 10x3x0.75 | 21.9 | 840 | 264 |
| 12x3x0.75 | 23.8 | 980 | 317 |
| 14x3x0.75 | 25.1 | 1,120 | 370 |
| 16x3x0.75 | 26.7 | 1,040 | 423 |
| 19x3x0.75 | 28.2 | 1,490 | 502 |
| 24x3x0.75 | 31.9 | 1,610 | 634 |
| 1x2x1.5 | 8.6 | 100 | 34 |
| 2x2x1.5 | 13.7 | 200 | 68 |
| 4x2x1.5 | 16.1 | 340 | 135 |
| 7x2x1.5 | 19.5 | 550 | 236 |
| 8x2x1.5 | 24.2 | 650 | 269 |
| 9x2x1.5 | 24.2 | 740 | 303 |
| 10x2x1.5 | 24.2 | 780 | 336 |
| 12x2x1.5 | 26.3 | 920 | 404 |
| 14x2x1.5 | 27.8 | 1,070 | 471 |
| 16x2x1.5 | 29.5 | 1,230 | 538 |
| 19x2x1.5 | 31.2 | 950 | 639 |
| 24x2x1.5 | 35.3 | 1,760 | 807 |
| 1x3x1.5 | 9.1 | 130 | 48 |
| 2x3x1.5 | 15.3 | 260 | 96 |
| 4x3x1.5 | 18.1 | 520 | 192 |
| 7x3x1.5 | 22.0 | 830 | 336 |
| 8x3x1.5 | 27.3 | 980 | 384 |
| 9x3x1.5 | 27.3 | 1,110 | 432 |
| 10x3x1.5 | 27.3 | 1,170 | 480 |
| 12x3x1.5 | 29.7 | 1,380 | 576 |
| 14x3x1.5 | 31.4 | 1,610 | 672 |
| 16x3x1.5 | 33.4 | 1,200 | 768 |
| 19x3x1.5 | 35.3 | 1,430 | 912 |
| 24x3x1.5 | 40.0 | 2,640 | 1152 |
| 1x2x2.5 | 9.5 | 320 | 53 |
| 2x2x2.5 | 15.4 | 650 | 106 |
| 4x2x2.5 | 18.2 | 990 | 212 |
| 7x2x2.5 | 22.1 | 1,100 | 370 |
| 8x2x2.5 | 27.5 | 1,420 | 423 |
| 9x2x2.5 | 27.5 | 1,600 | 476 |
| 10x2x2.5 | 27.5 | 1,980 | 528 |
| 1x3x2.5 | 10.1 | 370 | 77 |
| 2x3x2.5 | 17.3 | 740 | 154 |
| 4x3x2.5 | 20.5 | 1,480 | 308 |
| 7x3x2.5 | 24,9 | 1,650 | 538 |
| 8x3x2.5 | 31.1 | 2,130 | 615 |
| 9x3x2.5 | 31.1 | 2,400 | 692 |
| 10x3x2.5 | 31.1 | 2,970 | 768 |
Manufactured by Üntel Kablo. Supplied and held in Singapore for delivery across ASEAN by Everwell Cables & Electrical (S.E.A.) Pte Ltd. Contact us for cross-section, drum length, certification and lead time.
