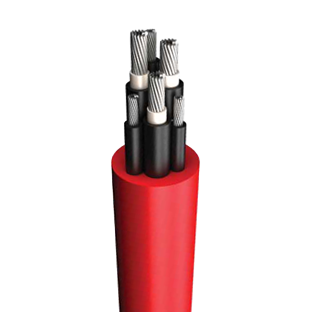

Üntel (N)TSCGEWÖU-(SB)
- Custom lengths cut to order
- Delivered across Southeast Asia
- Need help choosing? Call +65 6747 3336
About Üntel (N)TSCGEWÖU-(SB)
(N)TSCGEWÖU-(SB) — Üntel Kablo cable for mining applications.
Manufactured by Üntel Kablo. Supplied and held in Singapore for delivery across ASEAN by Everwell Cables & Electrical (S.E.A.) Pte Ltd. Contact us for cross-section, drum length, certification and lead time.
| Cross-section (mm2) | MIN. OVERALL DIAMETER | (mm) | MAX. OVERALL DIAMETER | (mm) | APPROX. CABLE WEIGHT | (kg/km) | COPPER WEIGHT | (kg/km) |
|---|---|---|---|---|
| 3.6/6kV | ||||
| 3×25+3×25/3 | 46.2 | 50.2 | 3.08 | 1.008 |
| 3×70+3×35/3 | 58.8 | 62.8 | 5.52 | 2.47 |
| 3×95+3×50/3 | 62.5 | 66.5 | 6.58 | 3.437 |
| 3×120+3×70/3 | 68.2 | 72.2 | 8.11 | 4.328 |
| 6/10kV | ||||
| 3×25+3×25/3 | 47.9 | 51.9 | 3.27 | 1.008 |
| 3×35+3×25/3 | 51.6 | 55.6 | 3.86 | 1.31 |
| 3×50+3×25/3 | 56.7 | 60.7 | 4.75 | 1.764 |
| 3×70+3×35/3 | 60.5 | 64.5 | 5.75 | 2.47 |
| 3×95+3×50/3 | 64.2 | 68.2 | 6.38 | 3.437 |
| 3×120+3×70/3 | 69.9 | 73.9 | 8.38 | 4.328 |
Dimensions and electrical data as published by Üntel Kablo. Ask us to confirm figures for your size and length.
