Üntel BU (NEK 606 P17)

Name: Üntel BU (NEK 606 P17)
Brand: Üntel Kablo
Availability: OutOfStock

Request a quote Datasheet

Type approvals and certificates

Custom lengths cut to order
Delivered across Southeast Asia
Need help choosing? Call +65 6747 3336

About Üntel BU (NEK 606 P17)

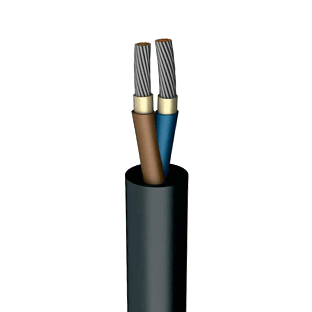

BU (NEK 606 P17) — Üntel Kablo cable for offshore applications.

Manufactured by Üntel Kablo. Supplied and held in Singapore for delivery across ASEAN by Everwell Cables & Electrical (S.E.A.) Pte Ltd. Contact us for cross-section, drum length, certification and lead time.

PDF Üntel BU (NEK 606 P17) datasheet

Nominal Cross-Section (mm²)	Cable Outer Diameter (mm)	Approximate Cable Weight (kg/km)	Copper Weight (kg/km)
1×1.5	6.3	60	15
1×2.5	6.7	70	24
1×10	8.9	170	96
1×16	10	230	154
1×25	11.9	350	240
1×35	13.1	450	336
1×50	14.6	600	480
1×70	16.6	810	672
1×95	18.9	1,070	912
1×120	20.9	1,370	1,152
1×150	23	1,670	1,440
1×185	25.3	2,060	1,776
1×240	28.2	2,590	2,304
1×300	31.1	3,210	2,880
2×1.5	10.7	160	29
2×2.5	11.7	200	48
2×4	12.9	260	77
2×6	14	320	116
2×10	16	460	192
2×16	18.2	630	308
2×25	22	970	480
2×35	24.5	1,240	672
2×50	27.5	1,640	960
3×1.5	11.5	190	44
3×2.5	12.5	240	72
3×4	13.8	320	116
3×6	15	400	173
3×10	17.2	570	288
3×16	19.5	790	461
3×25	23.7	1,240	720
3×35	26.3	1,590	1,008
3×50	29.6	2,120	1,440
3×70	33.9	2,840	2,016
3×95	38.9	3,790	2,736
3×120	43.2	4,820	3,456
3×150	47.6	5,890	4,320
3×185	52.7	7,270	5,328
3×240	58.8	9,160	6,912
4×1.5	12.6	240	58
4×2.5	13.8	300	96
4×4	15.2	390	154
4×6	16.5	500	231
4×10	19.1	720	384
4×16	21.6	1,010	615
4×25	26.3	1,580	960
4×35	29.2	2,040	1,344
4×50	33	2,720	1,920
4×70	37.8	3,650	2,688
4×95	43.3	4,880	3,648
4×120	48.2	6,220	4,608
4×150	53.2	7,610	5,760
4×185	58.9	9,390	7,104
5×1.5	13.9	310	72
5×2.5	15.2	390	120
5×4	16.8	500	192
5×6	18.3	640	288
5×10	21.1	910	480
5×16	23.9	1,280	768
5×25	29.1	1,990	1,200
5×35	32.4	2,560	1,680
5×50	36.6	3,410	2,400
5×70	42	4,580	3,360
5×95	48.2	6,110	4,560
7×1.5	15.2	450	101
7×2.5	16.7	560	168
10×1.5	18.8	630	144
10×2.5	20.7	790	240
12×1.5	20.5	760	173
12×2.5	22.5	950	288
14×1.5	21.6	880	202
14×2.5	23.7	1,110	336
19×1.5	24.3	1,190	274
19×2.5	26.7	1,490	456
24×1.5	27.4	1,500	346
24×2.5	30.2	1,890	576
27×1.5	29.4	1,690	389
27×2.5	32.4	2,120	648
37×1.5	33.3	2,310	533
37×2.5	36.7	2,900	888

Dimensions and electrical data as published by Üntel Kablo. Ask us to confirm figures for your size and length.
