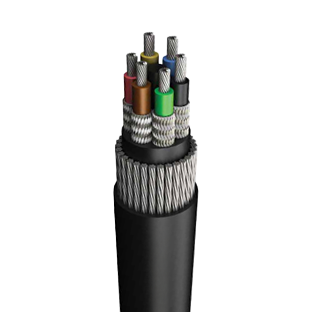

BS 6708 TYPE 506, 512, 518, 524 — Üntel Kablo cable for mining applications.
Dimensions and electrical data
| Cross Section | 6×1,34 | 12×1,34 | 18×1,34 | 24×0,93 | |
|---|---|---|---|---|---|
| Conductors | |||||
| Number and cross section | mm2 | 6×1,34 | 12×1,34 | 18×1,34 | 24×0,93 |
| Insulation thickness | mm | 0.4 | 0.4 | 0.4 | 0.4 |
| Cable details | |||||
| Radial thickness of inner sheath | mm | 3.5 | 1.8 | 1.5 | 1.5 |
| Min. inner sheath diameter | mm | 14.8 | 14.8 | 16.5 | 17.9 |
| Max. inner sheath diameter | mm | 16.8 | 16.8 | 18.5 | 19.9 |
| Size of armour | mm | 7/0,45 | 7/0,45 | 7/0,45 | 7/0,45 |
| Outer sheath thickness | mm | 1.8 | 1.8 | 1.8 | 1.8 |
| Min. overall diameter | mm | 22.1 | 22.1 | 22.8 | 24.2 |
| Max. overall diameter | mm | 23.6 | 23.6 | 25.3 | 26.7 |
| Min. bending radius | mm | 236 | 236 | 253 | 267 |
| Appx. cable weight | kg/km | 1.02 | 1.2 | 1.4 | 1.6 |
| Copper weight | kg/km | 150 | 300 | 450 | 450 |
| Electrical details | |||||
| “Continuous current | rating at 25°C Ambient” | A | 16 | 13 | 11 | 8 |
| Max. DC resistance at 20°C | |||||
| Conductors | Ω /km | 15.4 | 15.4 | 15.4 | 22.1 |
| Armour | Ω /km | 5.40 | 5.40 | 4.76 | 4.50 |
| 3 Ekran Paralel Bağlı | Ω /km | 37.3 | 37.3 | 37.3 | 44.7 |
| DC or single phase voltage drop | mV/A/m | 34 | 34 | 34 | 50 |
| 3 phase voltage drop | mV/A/m | 30 | 30 | 30 | 43 |
