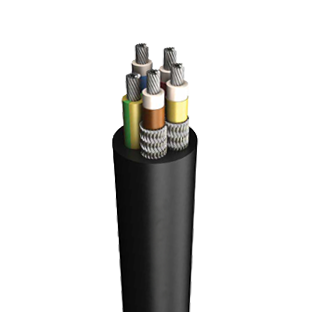

Üntel BS 6708 TYPE 44
Ships within 3–5 business days, subject to prior ex-stock sales.
Technical support available
Custom lengths available on request
SS & IEC certified products
BS 6708 TYPE 44 — Üntel Kablo cable for mining applications.
Dimensions and electrical data
| Cross Section | 5×6 | |
|---|---|---|
| Phase Conductor | ||
| Number and cross section | mm2 | 3×6 |
| Insulation thickness | mm | 1.00 |
| Total screen cross section | mm2 | 11 |
| Earth Conductor | ||
| Number and cross section | mm2 | 1×6 |
| Stranding | mm | 84/0,30 |
| Conductor diameter | Nom. mm | 3.30 |
| Insulation thickness | mm | 1.00 |
| Pilot Conductor | ||
| Number and cross section | mm2 | 1×6 |
| Stranding | mm | 84/0,30 |
| Conductor diameter | Nom. mm | 3.30 |
| Insulation thickness | mm | 1.00 |
| Cable details | ||
| Min. overall diameter | mm | 24.7 |
| Max. overall diameter | mm | 26.7 |
| Min. bending radius | mm | 241 |
| Radial diameter of outer sheath | mm | 3.0 |
| Max. pulling tension | kgf | 218 |
| Appx. cable weight | kg/km | 1.15 |
| Copper weight | kg/km | 400 |
| Electrical details | ||
| “Continuous current rating at 25°C Ambient” | A | 46 |
| Short curc›it current for 1 s | A | 908 |
| Max. DC resistance at 20°C | ||
| Phase and earth conductors | Ω /km | 11 |
| Pilot Conductor | Ω /km | 11 |
| 3 screens in parallel connection | Ω /km | 3.48 |
Manufactured by Üntel Kablo. Supplied and held in Singapore for delivery across ASEAN by Everwell Cables & Electrical (S.E.A.) Pte Ltd. Contact us for cross-section, drum length, certification and lead time.
