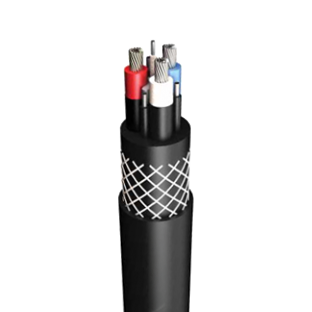

Üntel AS/NZS 1802 TYPE 241
- Custom lengths cut to order
- Delivered across Southeast Asia
- Need help choosing? Call +65 6747 3336
About Üntel AS/NZS 1802 TYPE 241
AS/NZS 1802 TYPE 241 — Üntel Kablo cable for mining applications.
Manufactured by Üntel Kablo. Supplied and held in Singapore for delivery across ASEAN by Everwell Cables & Electrical (S.E.A.) Pte Ltd. Contact us for cross-section, drum length, certification and lead time.
| Power Cores | Earth cores | Pilot core | Sheath | Mass | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CROSS SECTION | (mm2) | Strand | no/mm | Conductor | Diameter | Nom. mm | Insulation | thickness | mm | Insulation | diameter | Nom. mm | Strand | Min.no/mm | Crosssection | mm2 | Semiconductive | covering thickness | mm2 | Strand | no/mm | Insulation | thickness | Min.mm | Thickness | mm | Overall | diameter | Nom. Mm | APPX. WEIGHT | (kg / km) | COPPER WEIGHT | (kg / km) |
| Type | 241.1 | 1.1/1.1kV | |||||||||||
| 16 | 126/0.40 | 5.7 | 1.6 | 9 | 39/0.30 | 2.8 | 1 | 24/0,20 | 0.8 | 3.9 | 34.1 | 1.7 | 549 |
| 25 | 209/0.40 | 7.2 | 1.6 | 10.5 | 63/0.30 | 4.5 | 1 | 24/0,20 | 0.8 | 4.2 | 37.9 | 2.25 | 862 |
| 35 | 285/0.40 | 8.5 | 1.6 | 11.8 | 87/0.30 | 6.2 | 1 | 24/0,20 | 0.8 | 4.4 | 41.2 | 2.75 | 1.199 |
| 50 | 380/0.40 | 10 | 1.7 | 13.5 | 114/0.30 | 8.1 | 1 | 40/0,20 | 0.8 | 4.9 | 45.9 | 3.5 | 1.686 |
| 70 | 203/0.67 | 12 | 1.8 | 16 | 36/0.67 | 12.7 | 1 | 40/0,20 | 0.8 | 5.3 | 52.2 | 4.8 | 2.394 |
| 95 | 259/0.67 | 13.2 | 2 | 17.6 | 36/0.67 | 12.7 | 1 | 40/0,20 | 0.8 | 5.8 | 56.7 | 5.7 | 3.114 |
| 120 | 336/0.67 | 15.3 | 2.1 | 20 | 39/0.67 | 13.8 | 1.2 | 40/0,20 | 0.8 | 6.3 | 62.7 | 7.1 | 3.866 |
| 150 | 427/0.67 | 17.1 | 2.3 | 22.2 | 48/0.67 | 17 | 1.2 | 40/0,20 | 0.8 | 6.7 | 68.3 | 8.65 | 4.822 |
| 185 | 518/0.67 | 19.2 | 2.5 | 24.7 | 63/0.67 | 22.3 | 1.4 | 40/0,20 | 0.8 | 7.3 | 74.9 | 10.3 | 5.983 |
| 240 | 672/0.67 | 21.8 | 2.8 | 27.9 | 77/0.67 | 27.2 | 1.4 | 40/0,20 | 0.8 | 8 | 83.3 | 13 | 7.708 |
| 300 | 854/0.67 | 24.4 | 3 | 30.9 | 98/0.67 | 34.6 | 1.4 | 40/0,20 | 0.8 | 8.7 | 91.2 | 16 | 9.649 |
| Type | 241.3 | 3.3/3.3kV | |||||||||||
| 16 | 126/0.40 | 5.7 | 3 | 12.5 | 39/0.30 | 2.8 | 1 | 24/0,20 | 0.8 | 5 | 43.8 | 2.5 | 549 |
| 25 | 209/0.40 | 7.2 | 3 | 14 | 63/0.30 | 4.5 | 1 | 24/0,20 | 0.8 | 5.3 | 47.7 | 3.15 | 862 |
| 35 | 285/0.40 | 8.5 | 3 | 15.3 | 87/0.30 | 6.2 | 1 | 24/0,20 | 0.8 | 5.6 | 51.1 | 3.75 | 1.199 |
| 50 | 380/0.40 | 10 | 3 | 16.8 | 114/0.30 | 8.1 | 1.2 | 40/0,20 | 0.8 | 6 | 55.2 | 4.55 | 1.686 |
| 70 | 203/0.67 | 12 | 3 | 18.8 | 36/0.67 | 12.7 | 1.2 | 40/0,20 | 0.8 | 6.4 | 60.3 | 5.8 | 2.394 |
| 95 | 259/0.67 | 13.2 | 3 | 20 | 36/0.67 | 12.7 | 1.2 | 40/0,20 | 0.8 | 6.8 | 63.8 | 6.75 | 3.114 |
| 120 | 336/0.67 | 15.3 | 3 | 22.1 | 39/0.67 | 13.8 | 1.2 | 40/0,20 | 0.8 | 7.2 | 69.1 | 8.15 | 3.866 |
| 150 | 427/0.67 | 17.1 | 3 | 23.9 | 48/0.67 | 17 | 1.2 | 40/0,20 | 0.8 | 7.6 | 73.8 | 9.65 | 4.822 |
| 185 | 518/0.67 | 19.2 | 3 | 26 | 63/0.67 | 22.3 | 1.4 | 40/0,20 | 0.8 | 8 | 79.2 | 11.3 | 5.983 |
| 240 | 672/0.67 | 21.8 | 3 | 28.6 | 77/0.67 | 27.2 | 1.4 | 40/0,20 | 0.8 | 8.6 | 86 | 13.8 | 7.708 |
| 300 | 854/0.67 | 24.4 | 3 | 31.2 | 98/0.67 | 34.6 | 1.4 | 40/0,20 | 0.8 | 9.1 | 92.6 | 16.6 | 9.649 |
| Type | 241.6 | 6.6/6.6kV | |||||||||||
| 16 | 126/0.40 | 5.7 | 5 | 16.5 | 39/0.30 | 2.8 | 1.4 | 24/0,20 | 0.8 | 6.1 | 54.9 | 3.7 | 549 |
| 25 | 209/0.40 | 7.2 | 5 | 18 | 63/0.30 | 4.5 | 1.4 | 24/0,20 | 0.8 | 6.4 | 58.8 | 4.45 | 862 |
| 35 | 285/0.40 | 8.5 | 5 | 19.3 | 87/0.30 | 6.2 | 1.4 | 24/0,20 | 0.8 | 6.7 | 62.2 | 5.15 | 1.199 |
| 50 | 380/0.40 | 10 | 5 | 20.8 | 114/0.30 | 8.1 | 1.4 | 40/0,20 | 0.8 | 7.1 | 66.2 | 6 | 1.686 |
| 70 | 203/0.67 | 12 | 5 | 22.8 | 36/0.67 | 12.7 | 1.4 | 40/0,20 | 0.8 | 7.4 | 71.2 | 7.35 | 2.394 |
| 95 | 259/0.67 | 13.2 | 5 | 24 | 36/0.67 | 12.7 | 1.4 | 40/0,20 | 0.8 | 7.9 | 74.8 | 8.45 | 3.114 |
| 120 | 336/0.67 | 15.3 | 5 | 26.1 | 39/0.67 | 13.8 | 1.4 | 40/0,20 | 0.8 | 8.3 | 80.2 | 9.95 | 3.866 |
| 150 | 427/0.67 | 17.1 | 5 | 27.9 | 48/0.67 | 17 | 1.4 | 40/0,20 | 0.8 | 8.6 | 84.6 | 11.5 | 4.822 |
| 185 | 518/0.67 | 19.2 | 5 | 30 | 63/0.67 | 22.3 | 1.4 | 40/0,20 | 0.8 | 9 | 90 | 13.3 | 5.983 |
| 240 | 672/0.67 | 21.8 | 5 | 32.6 | 77/0.67 | 27.2 | 1.4 | 40/0,20 | 0.8 | 9.6 | 96.8 | 16 | 7.708 |
| 300 | 854/0.67 | 24.4 | 5 | 35.2 | 98/0.67 | 34.6 | 1.4 | 40/0,20 | 0.8 | 10.2 | 103.6 | 19 | 9.649 |
| Type | 241.11 | 11/11kV | |||||||||||
| 25 | 209/0.40 | 7.2 | 7.6 | 23.4 | 63/0.30 | 4.5 | 1.8 | 24/0,20 | 0.8 | 7.8 | 73.2 | 6.55 | 862 |
| 35 | 285/0.40 | 8.5 | 7.6 | 24.7 | 87/0.30 | 6.2 | 1.8 | 24/0,20 | 0.8 | 8.1 | 76.6 | 7.35 | 1.199 |
| 50 | 380/0.40 | 10 | 7.6 | 26.2 | 114/0.30 | 8.1 | 1.8 | 40/0,20 | 0.8 | 8.5 | 80.6 | 8.3 | 1.686 |
| 70 | 203/0.67 | 12 | 7.6 | 28.2 | 36/0.67 | 12.7 | 1.8 | 40/0,20 | 0.8 | 8.9 | 85.7 | 9.85 | 2.394 |
| 95 | 259/0.67 | 13.2 | 7.6 | 29.4 | 36/0.67 | 12.7 | 1.8 | 40/0,20 | 0.8 | 9.3 | 89.1 | 11 | 3.114 |
| 120 | 336/0.67 | 15.3 | 7.6 | 31.5 | 39/0.67 | 13.8 | 1.8 | 40/0,20 | 0.8 | 9.7 | 94.4 | 12.7 | 3.866 |
| 150 | 427/0.67 | 17.1 | 7.6 | 33.3 | 48/0.67 | 17 | 1.8 | 40/0,20 | 0.8 | 10 | 98.9 | 14.4 | 4.822 |
| 185 | 518/0.67 | 19.2 | 7.6 | 35.4 | 63/0.67 | 22.3 | 1.8 | 40/0,20 | 0.8 | 10.4 | 104.2 | 16.3 | 5.983 |
Dimensions and electrical data as published by Üntel Kablo. Ask us to confirm figures for your size and length.
