N1VC7V-K Signalling
- Standard
- ENEL DV 206 Signalling and control
- Flame retardant
- CEI EN 60332-1
Type approvals and certificates
- Custom lengths cut to order
- Delivered across Southeast Asia
- Need help choosing? Call +65 6747 3336

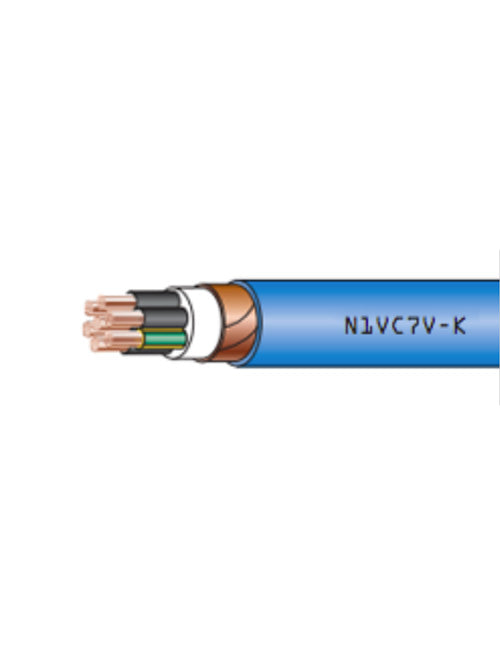

About N1VC7V-K Signalling
Signalling and control cable PVC insulated, copper tape screened, with PVC sheath, not propagating fire with reduced corrosive gas emission. Conductor Plain copper flexible wire, class 5 Insulation PVC compound, R2 quality Filler Non-hygroscopic compound Screen Two alternated red copper tapes screen Outer Sheath PVC compound, Rz quality Cores Colour Black numbered, with or without yellow/green protection conductor Sheath Colour Blue
Standards: CEI 20-22, EN 50267-2-1, EN 60332-1
Construction
- Conductor
- Plain copper flexible wire, class 5
- Insulation
- PVC compound, R2 quality
- Outer sheath
- PVC compound, Rz quality
Screen: Two alternated red copper tapes screen
Filler: Non-hygroscopic compound - Cores / colour
- Cores: Black numbered, with or without yellow/green protection conductor
Sheath: Blue
Standards and compliance
- Standard
- ENEL DV 206 Signalling and control
- Flame retardant
- CEI EN 60332-1
- Fire propagation
- CEI 20-22 II
- Gas emission
- CEI EN 50267-2-1
- Low Voltage Directive
- 2014/35/UE
- RoHS Directive
- 2011/65/CE
- IMQ Certificate
- A0918
- ENEL Certification
- ENEL-DIS-10/05/2013-0595563
Application
Signalling and control cable PVC insulated, copper tape screened, with PVC sheath, not propagating fire with reduced corrosive gas emission
