AristoncaviAristoncavi · Low Voltage (Rubber)

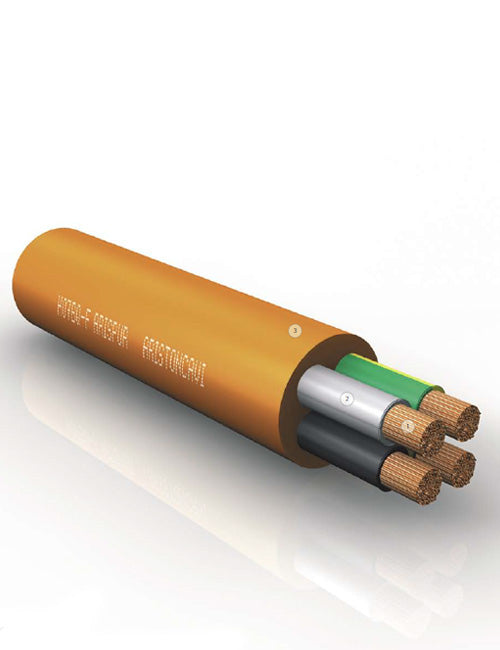

H07BQ-F
- Rated voltage
- Uo / U = 450/ 750 V
- Standard
- CEI 20 · HD 516
- Temperature range
- – 50°C ~ – 25°C to + 90°C
- Custom lengths cut to order
- Delivered across Southeast Asia
- Need help choosing? Call +65 6747 3336
About H07BQ-F
and Applications In compliance with CEI 20 – 40 and HD 516S2, is recommended for use in dry or wet environments, for outdoor; for moderate mechanical stressed, for example, industrial and agricultural apparatus, heater apparatus if there is not contact risk with hot elements and is not subjected to radiation, for electric tools such as drills and disk saws and for portable motors and generators on building sites or farms and naval sites; right for cold storage application. Very suitable for situations when the cable is subjected to strong abrasion and tearing stress.
Standards: CEI 20, HD 516
Electrical and mechanical
- Rated voltage
- Uo / U = 450/ 750 V
- Test voltage
- 2,5 kV
- Temperature range
- – 50°C ~ – 25°C to + 90°C
- Max temperature
- 250°C (short-circuit)
- Min laying temperature
- – 40°C
- Min bending radius
- 4 X D ~ 6 X D
Standards and compliance
- Standard
- CEI 20 · HD 516
Application
In compliance with CEI 20 – 40 and HD 516S2, is recommended for use in dry or wet environments, for outdoor; for moderate mechanical stressed, for example, industrial and agricultural apparatus, heater apparatus if there is not contact risk with hot elements and is not subjected to radiation, for electric tools such as drills and disk saws and for portable motors and generators on building sites or farms and naval sites; right for cold storage application. Very suitable for situations when the cable is subjected to strong abrasion and tearing stress
