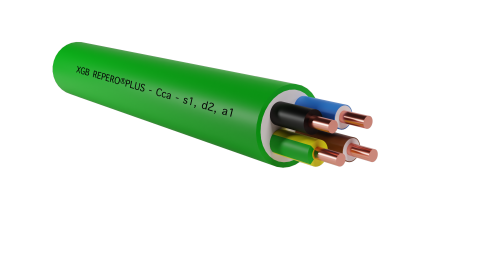

Baldassari XGB 0,6/1 kV Repero® Plus
Type approvals and certificates
- Available in 33 sizes. See the size table
- Custom lengths cut to order
- Delivered across Southeast Asia
- Need help choosing? Call +65 6747 3336
About Baldassari XGB 0,6/1 kV Repero® Plus
XGB 0,6/1 kV Repero® Plus — export cable, cpr low voltage cables.
Technical specification
| Nominal Voltage Uo / U | 0,6/1 kV |
|---|---|
| Maximum Working Temperature | 90°C |
| Maximum Short Circuit Temperature | 250°C |
Manufactured in Italy by Bruno Baldassari & F.lli. Supplied and held in Singapore for delivery across ASEAN by Everwell Cables & Electrical (S.E.A.) Pte Ltd. Contact us for cross-section, drum length, CPR declaration and lead time.
XGB is the Belgian NBN designation: X = XLPE insulation, G = halogen-free LS0H sheath, B = construction to the Belgian standard. Rated 0.6/1 kV.
| Size | Cores | mm² | Ø mm | Request a quote |
|---|---|---|---|---|
| 2 x 1.5 | 2 | 1.5 | 8.5 | Quote |
| 2 x 2.5 | 2 | 2.5 | 9.3 | Quote |
| 2 x 4 | 2 | 4 | 10.2 | Quote |
| 2 x 6 | 2 | 6 | 11.3 | Quote |
| 2 x 10 | 2 | 10 | 12.8 | Quote |
| 2 x 16 | 2 | 16 | 15.1 | Quote |
| 2 x 25 | 2 | 25 | 18.6 | Quote |
| 2 x 35 | 2 | 35 | 20.8 | Quote |
| 3 x 1.5 | 3 | 1.5 | 8.9 | Quote |
| 3 x 2.5 | 3 | 2.5 | 9.8 | Quote |
| 3 x 4 | 3 | 4 | 10.8 | Quote |
| 3 x 6 | 3 | 6 | 12 | Quote |
| 3 x 10 | 3 | 10 | 13.6 | Quote |
| 3 x 16 | 3 | 16 | 16.2 | Quote |
| 3 x 25 | 3 | 25 | 19.8 | Quote |
| 3 x 35 | 3 | 35 | 22.4 | Quote |
| 3 x 50 | 3 | 50 | 25.5 | Quote |
| 4 x 1.5 | 4 | 1.5 | 10 | Quote |
| 4 x 2.5 | 4 | 2.5 | 10.9 | Quote |
| 4 x 4 | 4 | 4 | 11.7 | Quote |
| 4 x 6 | 4 | 6 | 13 | Quote |
| 4 x 10 | 4 | 10 | 15 | Quote |
| 4 x 16 | 4 | 16 | 17.8 | Quote |
| 4 x 25 | 4 | 25 | 21.9 | Quote |
| 4 x 35 | 4 | 35 | 24.8 | Quote |
| 4 x 50 | 4 | 50 | 28.2 | Quote |
| 5 x 1.5 | 5 | 1.5 | 10.8 | Quote |
| 5 x 2.5 | 5 | 2.5 | 11.8 | Quote |
| 5 x 4 | 5 | 4 | 12.7 | Quote |
| 5 x 6 | 5 | 6 | 14.2 | Quote |
| 5 x 10 | 5 | 10 | 16.4 | Quote |
| 5 x 16 | 5 | 16 | 19.7 | Quote |
| 5 x 25 | 5 | 25 | 24.1 | Quote |
