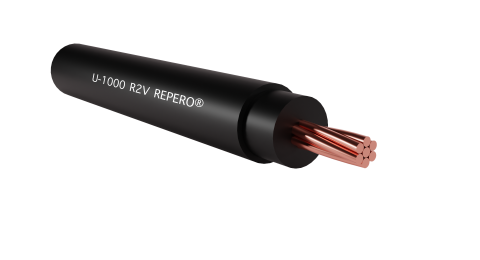

Baldassari U-1000 R2V 0,6/1 kV Repero®
Type approvals and certificates
- Available in 19 sizes. See the size table
- Custom lengths cut to order
- Delivered across Southeast Asia
- Need help choosing? Call +65 6747 3336
About Baldassari U-1000 R2V 0,6/1 kV Repero®
U-1000 R2V 0,6/1 kV Repero® — export cable, cpr low voltage cables.
Technical specification
| Nominal Voltage Uo / U | 0,6/1 kV |
|---|---|
| Maximum Working Temperature | 90°C |
| Maximum Short Circuit Temperature | 250°C |
Manufactured in Italy by Bruno Baldassari & F.lli. Supplied and held in Singapore for delivery across ASEAN by Everwell Cables & Electrical (S.E.A.) Pte Ltd. Contact us for cross-section, drum length, CPR declaration and lead time.
U-1000 R2V / AR2V is the French NF C 32-321 designation: U-1000 = 0.6/1 kV, R2 = XLPE insulation, V = PVC sheath; the A prefix means aluminium conductor.
| Size | Cores | mm² | Ø mm | Request a quote |
|---|---|---|---|---|
| 1 x 1.5 | 1 | 1.5 | 5 | Quote |
| 1 x 2.5 | 1 | 2.5 | 5.4 | Quote |
| 1 x 4 | 1 | 4 | 5.8 | Quote |
| 1 x 6 | 1 | 6 | 6.6 | Quote |
| 1 x 10 | 1 | 10 | 7.5 | Quote |
| 1 x 16 | 1 | 16 | 8.4 | Quote |
| 1 x 25 | 1 | 25 | 9.9 | Quote |
| 1 x 35 | 1 | 35 | 11 | Quote |
| 1 x 50 | 1 | 50 | 12.4 | Quote |
| 1 x 70 | 1 | 70 | 14.2 | Quote |
| 1 x 95 | 1 | 95 | 16.1 | Quote |
| 1 x 120 | 1 | 120 | 17.8 | Quote |
| 1 x 150 | 1 | 150 | 19.9 | Quote |
| 1 x 185 | 1 | 185 | 22.1 | Quote |
| 1 x 240 | 1 | 240 | 24.8 | Quote |
| 1 x 300 | 1 | 300 | 30.3 | Quote |
| 1 x 400 | 1 | 400 | 32.7 | Quote |
| 1 x 500 | 1 | 500 | 37.5 | Quote |
| 1 x 630 | 1 | 630 | 40.2 | Quote |
