Bruno BaldassariBruno Baldassari · Export Cables

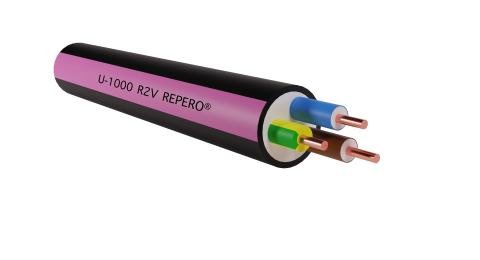

Baldassari U-1000 R2V 0,6/1 kV Repero®
Type approvals and certificates
- Available in 59 sizes. See the size table
- Custom lengths cut to order
- Delivered across Southeast Asia
- Need help choosing? Call +65 6747 3336
About Baldassari U-1000 R2V 0,6/1 kV Repero®
U-1000 R2V 0,6/1 kV Repero® — export cable, cpr low voltage cables.
Technical specification
| Nominal Voltage Uo / U | 0,6/1 kV |
|---|---|
| Maximum Working Temperature | 90°C |
| Maximum Short Circuit Temperature | 250°C |
Manufactured in Italy by Bruno Baldassari & F.lli. Supplied and held in Singapore for delivery across ASEAN by Everwell Cables & Electrical (S.E.A.) Pte Ltd. Contact us for cross-section, drum length, CPR declaration and lead time.
U-1000 R2V / AR2V is the French NF C 32-321 designation: U-1000 = 0.6/1 kV, R2 = XLPE insulation, V = PVC sheath; the A prefix means aluminium conductor.
| Size | Cores | mm² | Ø mm | Request a quote |
|---|---|---|---|---|
| 2 x 1.5 | 2 | 1.5 | 8 | Quote |
| 2 x 2.5 | 2 | 2.5 | 8.8 | Quote |
| 2 x 4 | 2 | 4 | 9.8 | Quote |
| 2 x 6 | 2 | 6 | 11.7 | Quote |
| 2 x 10 | 2 | 10 | 13.4 | Quote |
| 2 x 16 | 2 | 16 | 15.3 | Quote |
| 2 x 25 | 2 | 25 | 18.5 | Quote |
| 2 x 35 | 2 | 35 | 20.7 | Quote |
| 3 x 1.5 | 3 | 1.5 | 8.4 | Quote |
| 3 x 2.5 | 3 | 2.5 | 9.2 | Quote |
| 3 x 4 | 3 | 4 | 10.5 | Quote |
| 3 x 6 | 3 | 6 | 12.4 | Quote |
| 3 x 10 | 3 | 10 | 14.2 | Quote |
| 3 x 16 | 3 | 16 | 16.3 | Quote |
| 3 x 25 | 3 | 25 | 19.7 | Quote |
| 3 x 35 | 3 | 35 | 22.2 | Quote |
| 3 x 50 | 3 | 50 | 25.2 | Quote |
| 3 x 70 | 3 | 70 | 30.7 | Quote |
| 3 x 95 | 3 | 95 | 34.5 | Quote |
| 3 x 120 | 3 | 120 | 38.7 | Quote |
| 3 x 150 | 3 | 150 | 43.1 | Quote |
| 3 x 185 | 3 | 185 | 48.2 | Quote |
| 3 x 240 | 3 | 240 | 54.1 | Quote |
| 3 x 300 | 3 | 300 | 66.6 | Quote |
| 4 x 1.5 | 4 | 1.5 | 9.1 | Quote |
| 4 x 2.5 | 4 | 2.5 | 10.1 | Quote |
| 4 x 4 | 4 | 4 | 11.4 | Quote |
| 4 x 6 | 4 | 6 | 13.8 | Quote |
| 4 x 10 | 4 | 10 | 15.9 | Quote |
| 4 x 16 | 4 | 16 | 18.1 | Quote |
| 4 x 25 | 4 | 25 | 22 | Quote |
| 4 x 35 | 4 | 35 | 24.6 | Quote |
| 3 x 50 + 35 | 3+1 | 50 | 26.8 | Quote |
| 4 x 50 | 4 | 50 | 28.3 | Quote |
| 3 x 70 + 50 | 3+1 | 70 | 32.2 | Quote |
| 4 x 70 | 4 | 70 | 34.2 | Quote |
| 3 x 95 + 50 | 3+1 | 95 | 36.4 | Quote |
| 4 x 95 | 4 | 95 | 38.4 | Quote |
| 3 x 120 + 70 | 3+1 | 120 | 40.7 | Quote |
| 4 x 120 | 4 | 120 | 43.4 | Quote |
| 3 x 150 + 70 | 3+1 | 150 | 44.2 | Quote |
| 4 x 150 | 4 | 150 | 48.3 | Quote |
| 3 x 185 + 70 | 3+1 | 185 | 48.8 | Quote |
| 4 x 185 | 4 | 185 | 53.8 | Quote |
| 3 x 240 + 95 | 3+1 | 240 | 54.9 | Quote |
| 4 x 240 | 4 | 240 | 60.4 | Quote |
| 4 x 300 | 4 | 300 | 74.6 | Quote |
| 5 x 1.5 | 5 | 1.5 | 10.2 | Quote |
| 5 x 2.5 | 5 | 2.5 | 11 | Quote |
| 5 x 4 | 5 | 4 | 12.4 | Quote |
| 5 x 6 | 5 | 6 | 15.5 | Quote |
| 5 x 10 | 5 | 10 | 17.8 | Quote |
| 5 x 16 | 5 | 16 | 20.6 | Quote |
| 5 x 25 | 5 | 25 | 25.2 | Quote |
| 5 x 35 | 5 | 35 | 27.3 | Quote |
| 5 x 50 | 5 | 50 | 31.2 | Quote |
| 5 x 70 | 5 | 70 | 37.6 | Quote |
| 5 x 95 | 5 | 95 | 43 | Quote |
| 5 x 120 | 5 | 120 | 48.2 | Quote |
