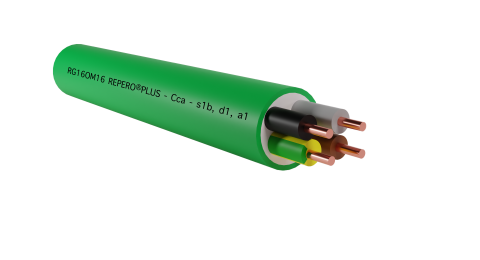

Baldassari RG16OM16 0,6/1 kV Repero® Plus
- Available in 51 sizes. See the size table
- Custom lengths cut to order
- Delivered across Southeast Asia
- Need help choosing? Call +65 6747 3336
About Baldassari RG16OM16 0,6/1 kV Repero® Plus
RG16OM16 0,6/1 kV Repero® Plus — national cable, cpr low voltage cables.
Technical specification
| Nominal Voltage Uo / U | 0,6/1 kV |
|---|---|
| Maximum Working Temperature | 90 °C |
| Maximum Short Circuit Temperature | 250 °C up to 240 mm2, above that 220 °C |
Manufactured in Italy by Bruno Baldassari & F.lli. Supplied and held in Singapore for delivery across ASEAN by Everwell Cables & Electrical (S.E.A.) Pte Ltd. Contact us for cross-section, drum length, CPR declaration and lead time.
RG16OM16 is an Italian CEI-UNEL designation: R = rigid stranded copper conductor, G16 = rubber (EPR/HEPR) insulation, CEI-UNEL compound grade 16, O = cores laid up under a filler (multi-core), M16 = LS0H halogen-free sheath, grade 16. In the size column, 3G 2.5 means three 2.5 mm² cores including a green/yellow earth; 3 x 2.5 means three cores with no earth.
| Size | Cores | mm² | Ø mm | Request a quote |
|---|---|---|---|---|
| 2 x 1.5 | 2 | 1.5 | 11.5 | Quote |
| 2 x 2.5 | 2 | 2.5 | 12.4 | Quote |
| 2 x 4 | 2 | 4 | 13.6 | Quote |
| 2 x 6 | 2 | 6 | 14.7 | Quote |
| 2 x 10 | 2 | 10 | 16.6 | Quote |
| 2 x 16 | 2 | 16 | 18.6 | Quote |
| 2 x 25 | 2 | 25 | 22.1 | Quote |
| 2 x 35 | 2 | 35 | 24.6 | Quote |
| 2 x 50 | 2 | 50 | 28.1 | Quote |
| 2 x 70 | 2 | 70 | 31.7 | Quote |
| 2 x 95 | 2 | 95 | 35.9 | Quote |
| 2 x 120 | 2 | 120 | 39.8 | Quote |
| 2 x 150 | 2 | 150 | 44.2 | Quote |
| 3 x 1.5 | 3 | 1.5 | 12 | Quote |
| 3 x 2.5 | 3 | 2.5 | 13 | Quote |
| 3 x 4 | 3 | 4 | 14.3 | Quote |
| 3 x 6 | 3 | 6 | 15.5 | Quote |
| 3 x 10 | 3 | 10 | 17.5 | Quote |
| 3 x 16 | 3 | 16 | 19.7 | Quote |
| 3 x 25 | 3 | 25 | 23.4 | Quote |
| 3 x 35 | 3 | 35 | 26.2 | Quote |
| 3 x 50 | 3 | 50 | 29.9 | Quote |
| 3 x 70 | 3 | 70 | 34.1 | Quote |
| 3 x 95 | 3 | 95 | 38.3 | Quote |
| 3 x 120 | 3 | 120 | 42.5 | Quote |
| 3 x 150 | 3 | 150 | 47.4 | Quote |
| 3 x 185 | 3 | 185 | 52.9 | Quote |
| 3 x 240 | 3 | 240 | 59.3 | Quote |
| 4 x 1.5 | 4 | 1.5 | 12.9 | Quote |
| 4 x 2.5 | 4 | 2.5 | 14 | Quote |
| 4 x 4 | 4 | 4 | 15.4 | Quote |
| 4 x 6 | 4 | 6 | 16.7 | Quote |
| 4 x 10 | 4 | 10 | 19 | Quote |
| 4 x 16 | 4 | 16 | 21.5 | Quote |
| 4 x 25 | 4 | 25 | 25.7 | Quote |
| 3 x 35 + 25 | 3+1 | 35 | 28 | Quote |
| 3 x 50 + 25 | 3+1 | 50 | 31.1 | Quote |
| 3 x 70 + 35 | 3+1 | 70 | 35.4 | Quote |
| 3 x 95 + 50 | 3+1 | 95 | 40.3 | Quote |
| 3 x 120 + 70 | 3+1 | 120 | 44.9 | Quote |
| 3 x 150 + 95 | 3+1 | 150 | 50.3 | Quote |
| 3 x 185 + 95 | 3+1 | 185 | 45.5 | Quote |
| 3 x 240 + 150 | 3+1 | 240 | 61.5 | Quote |
| 5 x 1.5 | 5 | 1.5 | 13.8 | Quote |
| 5 x 2.5 | 5 | 2.5 | 15 | Quote |
| 5 x 4 | 5 | 4 | 16.5 | Quote |
| 5 x 6 | 5 | 6 | 18.1 | Quote |
| 5 x 10 | 5 | 10 | 20.6 | Quote |
| 5 x 16 | 5 | 16 | 23.4 | Quote |
| 5 x 25 | 5 | 25 | 28 | Quote |
| 5 x 35 | 5 | 35 | 31.5 | Quote |
