Bruno BaldassariBruno Baldassari · Harmonized Cables

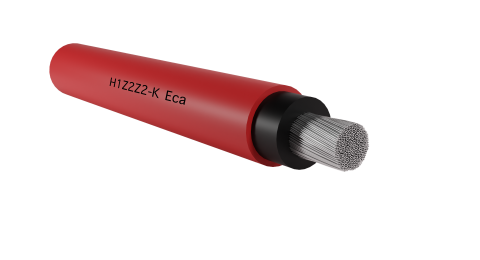

Baldassari H1Z2Z2-K Eca 1800 V c.c. – 1200 V c.a.
- Available in 14 sizes. See the size table
- Custom lengths cut to order
- Delivered across Southeast Asia
- Need help choosing? Call +65 6747 3336
About Baldassari H1Z2Z2-K Eca 1800 V c.c. – 1200 V c.a.
H1Z2Z2-K Eca 1800 V c.c. – 1200 V c.a. — harmonized cable, cpr low voltage cables.
Technical specification
| Nominal Voltage Uo / U | 1800 V c.c. – 1200 V c.a. |
|---|---|
| Maximum Working Temperature | 90 °C |
| Maximum Short Circuit Temperature | 250°C |
Manufactured in Italy by Bruno Baldassari & F.lli. Supplied and held in Singapore for delivery across ASEAN by Everwell Cables & Electrical (S.E.A.) Pte Ltd. Contact us for cross-section, drum length, CPR declaration and lead time.
H1Z2Z2-K is the EN 50618 photovoltaic cable code: H = harmonised, 1 = 1.5 kV DC / 1 kV AC, Z2 = halogen-free cross-linked insulation, Z2 = halogen-free cross-linked sheath, K = flexible class 5 tinned copper conductor.
| Size | Cores | mm² | Ø mm | Request a quote |
|---|---|---|---|---|
| 1 x 4 | 1 | 4 | 5.5 | Quote |
| 1 x 6 | 1 | 6 | 6 | Quote |
| 1 x 10 | 1 | 10 | 7.2 | Quote |
| 1 x 16 | 1 | 16 | 8.4 | Quote |
| 1 x 25 | 1 | 25 | 10.3 | Quote |
| 1 x 35 | 1 | 35 | 11.5 | Quote |
| 1 x 50 | 1 | 50 | 13.3 | Quote |
| 1 x 70 | 1 | 70 | 15.3 | Quote |
| 1 x 95 | 1 | 95 | 17.3 | Quote |
| 1 x 120 | 1 | 120 | 19.2 | Quote |
| 1 x 150 | 1 | 150 | 21.3 | Quote |
| 1 x 185 | 1 | 185 | 24.4 | Quote |
| 1 x 240 | 1 | 240 | 26.6 | Quote |
| 1 x 300 | 1 | 300 | 30.2 | Quote |
