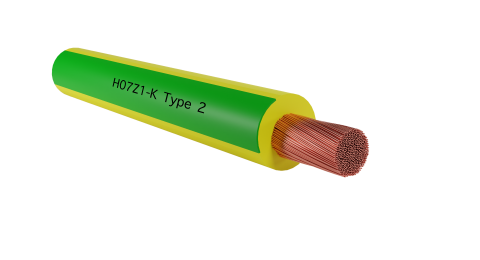

Baldassari H07Z1-K Type 2 450/750 V
- Available in 15 sizes. See the size table
- Custom lengths cut to order
- Delivered across Southeast Asia
- Need help choosing? Call +65 6747 3336
About Baldassari H07Z1-K Type 2 450/750 V
H07Z1-K Type 2 450/750 V — harmonized cable, cpr low voltage cables.
Technical specification
| Nominal Voltage Uo / U | 450/750 V |
|---|---|
| Maximum Working Temperature | 70°C |
| Maximum Short Circuit Temperature | 150°C |
Manufactured in Italy by Bruno Baldassari & F.lli. Supplied and held in Singapore for delivery across ASEAN by Everwell Cables & Electrical (S.E.A.) Pte Ltd. Contact us for cross-section, drum length, CPR declaration and lead time.
H07Z1-K is a CENELEC harmonised code: H = harmonised standard (EN 50525), 07 = rated 450/750 V, Z1 = halogen-free thermoplastic insulation, K = flexible class 5 conductor for fixed installation.
| Size | Cores | mm² | Ø mm | Request a quote |
|---|---|---|---|---|
| 1 x 1.5 | 1 | 1.5 | 0.7 | Quote |
| 1 x 2.5 | 1 | 2.5 | 0.8 | Quote |
| 1 x 4 | 1 | 4 | 0.8 | Quote |
| 1 x 6 | 1 | 6 | 0.8 | Quote |
| 1 x 10 | 1 | 10 | 1 | Quote |
| 1 x 16 | 1 | 16 | 1 | Quote |
| 1 x 25 | 1 | 25 | 1.2 | Quote |
| 1 x 35 | 1 | 35 | 1.2 | Quote |
| 1 x 50 | 1 | 50 | 1.4 | Quote |
| 1 x 70 | 1 | 70 | 1.4 | Quote |
| 1 x 95 | 1 | 95 | 1.6 | Quote |
| 1 x 120 | 1 | 120 | 1.6 | Quote |
| 1 x 150 | 1 | 150 | 1.8 | Quote |
| 1 x 185 | 1 | 185 | 2 | Quote |
| 1 x 240 | 1 | 240 | 2.2 | Quote |
