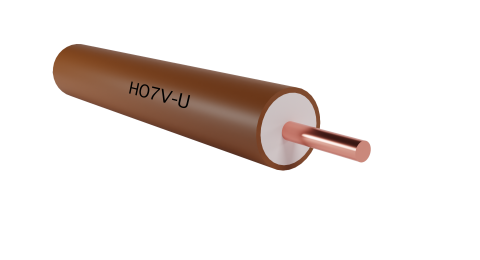

Baldassari H07V-U 450/750 V

Name: Baldassari H07V-U 450/750 V
Brand: Bruno Baldassari
Availability: OutOfStock

Request a quote Datasheet

Type approvals and certificates

Available in 5 sizes. See the size table
Custom lengths cut to order
Delivered across Southeast Asia
Need help choosing? Call +65 6747 3336

About Baldassari H07V-U 450/750 V

H07V-U 450/750 V — harmonized cable, cpr low voltage cables.

Technical specification

Nominal Voltage Uo / U	450/750 V
Maximum Working Temperature	70°C
Maximum Short Circuit Temperature	160°C

Manufactured in Italy by Bruno Baldassari & F.lli. Supplied and held in Singapore for delivery across ASEAN by Everwell Cables & Electrical (S.E.A.) Pte Ltd. Contact us for cross-section, drum length, CPR declaration and lead time.

H07V-U is a CENELEC harmonised code: H = harmonised standard (EN 50525), 07 = rated 450/750 V, V = PVC insulation, U = solid conductor.

PDF Baldassari H07V-U 450/750 V datasheet PDF Declaration of Performance (DoP)

Size	Cores	mm²	Ø mm	Request a quote
1 x 1.5	1	1.5	2.7	Quote
1 x 2.5	1	2.5	3.3	Quote
1 x 4	1	4	3.7	Quote
1 x 6	1	6	4.3	Quote
1 x 10	1	10	5.5	Quote

More in Harmonized Cables

View all 29
