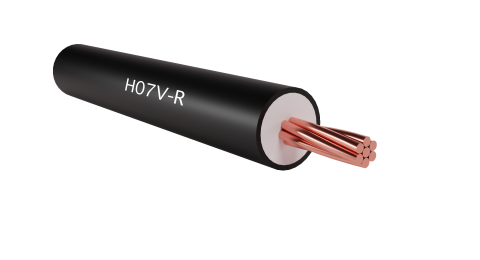

Baldassari H07V-R 450/750 V
- Available in 17 sizes. See the size table
- Custom lengths cut to order
- Delivered across Southeast Asia
- Need help choosing? Call +65 6747 3336
About Baldassari H07V-R 450/750 V
H07V-R 450/750 V — harmonized cable, cpr low voltage cables.
Technical specification
| Nominal Voltage Uo / U | 450/750 V |
|---|---|
| Maximum Working Temperature | 70°C |
| Maximum Short Circuit Temperature | 160°C |
Manufactured in Italy by Bruno Baldassari & F.lli. Supplied and held in Singapore for delivery across ASEAN by Everwell Cables & Electrical (S.E.A.) Pte Ltd. Contact us for cross-section, drum length, CPR declaration and lead time.
H07V-R is a CENELEC harmonised code: H = harmonised standard (EN 50525), 07 = rated 450/750 V, V = PVC insulation, R = stranded conductor.
| Size | Cores | mm² | Ø mm | Request a quote |
|---|---|---|---|---|
| 1 x 1.5 | 1 | 1.5 | 3 | Quote |
| 1 x 2.5 | 1 | 2.5 | 3.6 | Quote |
| 1 x 4 | 1 | 4 | 4.1 | Quote |
| 1 x 6 | 1 | 6 | 4.7 | Quote |
| 1 x 10 | 1 | 10 | 5.9 | Quote |
| 1 x 16 | 1 | 16 | 6.7 | Quote |
| 1 x 25 | 1 | 25 | 8.3 | Quote |
| 1 x 35 | 1 | 35 | 9.3 | Quote |
| 1 x 50 | 1 | 50 | 10.9 | Quote |
| 1 x 70 | 1 | 70 | 12.5 | Quote |
| 1 x 95 | 1 | 95 | 14.5 | Quote |
| 1 x 120 | 1 | 120 | 16.1 | Quote |
| 1 x 150 | 1 | 150 | 17.7 | Quote |
| 1 x 185 | 1 | 185 | 19.8 | Quote |
| 1 x 240 | 1 | 240 | 22.6 | Quote |
| 1 x 300 | 1 | 300 | 27.3 | Quote |
| 1 x 400 | 1 | 400 | 30.2 | Quote |
