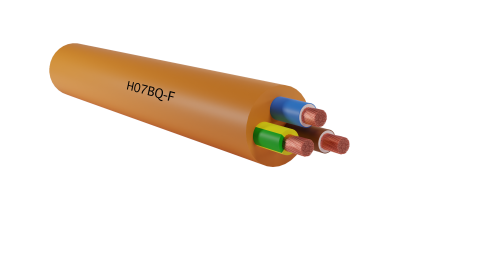

Baldassari H07BQ-F 450/750 V
- Available in 28 sizes. See the size table
- Custom lengths cut to order
- Delivered across Southeast Asia
- Need help choosing? Call +65 6747 3336
About Baldassari H07BQ-F 450/750 V
H07BQ-F 450/750 V — harmonized cable, cpr low voltage cables.
Technical specification
| Nominal Voltage Uo / U | 450/750 V |
|---|
Manufactured in Italy by Bruno Baldassari & F.lli. Supplied and held in Singapore for delivery across ASEAN by Everwell Cables & Electrical (S.E.A.) Pte Ltd. Contact us for cross-section, drum length, CPR declaration and lead time.
H07BQ-F is a CENELEC harmonised code: H = harmonised standard (EN 50525), 07 = rated 450/750 V, B = EPR rubber insulation, Q = polyurethane sheath, F = flexible class 5 conductor. In the size column, 3G 2.5 means three 2.5 mm² cores including a green/yellow earth; 3 x 2.5 means three cores with no earth.
| Size | Cores | mm² | Ø mm | Request a quote |
|---|---|---|---|---|
| 2 x 1 | 2 | 1 | 7.5 | Quote |
| 2 x 1.5 | 2 | 1.5 | 8.2 | Quote |
| 2 x 2.5 | 2 | 2.5 | 9.6 | Quote |
| 2 x 4 | 2 | 4 | 11.4 | Quote |
| 2 x 6 | 2 | 6 | 12.6 | Quote |
| 2 x 10 | 2 | 10 | 18 | Quote |
| 2 x 16 | 2 | 16 | 20.6 | Quote |
| 3 x 1 | 3 | 1 | 8 | Quote |
| 3 x 1.5 | 3 | 1.5 | 8.7 | Quote |
| 3 x 2.5 | 3 | 2.5 | 10.2 | Quote |
| 3 x 4 | 3 | 4 | 12.1 | Quote |
| 3 x 6 | 3 | 6 | 13.6 | Quote |
| 3 x 10 | 3 | 10 | 19.4 | Quote |
| 3 x 16 | 3 | 16 | 22.2 | Quote |
| 4 x 1 | 4 | 1 | 8.9 | Quote |
| 4 x 1.5 | 4 | 1.5 | 9.7 | Quote |
| 4 x 2.5 | 4 | 2.5 | 11.4 | Quote |
| 4 x 4 | 4 | 4 | 13.5 | Quote |
| 4 x 6 | 4 | 6 | 15.1 | Quote |
| 4 x 10 | 4 | 10 | 21.5 | Quote |
| 4 x 16 | 4 | 16 | 24.3 | Quote |
| 5 x 1 | 5 | 1 | 9.9 | Quote |
| 5 x 1.5 | 5 | 1.5 | 10.6 | Quote |
| 5 x 2.5 | 5 | 2.5 | 12.6 | Quote |
| 5 x 4 | 5 | 4 | 15 | Quote |
| 5 x 6 | 5 | 6 | 16.7 | Quote |
| 5 x 10 | 5 | 10 | 23.7 | Quote |
| 5 x 16 | 5 | 16 | 27 | Quote |
