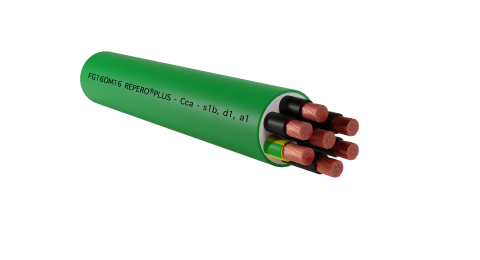

Baldassari FG16OM16 0,6/1 kV Repero® Plus
Type approvals and certificates
- Available in 13 sizes. See the size table
- Custom lengths cut to order
- Delivered across Southeast Asia
- Need help choosing? Call +65 6747 3336
About Baldassari FG16OM16 0,6/1 kV Repero® Plus
FG16OM16 0,6/1 kV Repero® Plus — national cable, cpr low voltage cables.
Technical specification
| Nominal Voltage Uo / U | 0,6/1 kV |
|---|---|
| Maximum Working Temperature | 90°C |
| Maximum Short Circuit Temperature | 250°C |
Manufactured in Italy by Bruno Baldassari & F.lli. Supplied and held in Singapore for delivery across ASEAN by Everwell Cables & Electrical (S.E.A.) Pte Ltd. Contact us for cross-section, drum length, CPR declaration and lead time.
FG16OM16 is an Italian CEI-UNEL designation: F = flexible class 5 copper conductor, G16 = rubber (EPR/HEPR) insulation, CEI-UNEL compound grade 16, O = cores laid up under a filler (multi-core), M16 = LS0H halogen-free sheath, grade 16. In the size column, 3G 2.5 means three 2.5 mm² cores including a green/yellow earth; 3 x 2.5 means three cores with no earth.
| Size | Cores | mm² | Ø mm | Request a quote |
|---|---|---|---|---|
| 5 x 1.5 | 5 | 1.5 | 12.6 | Quote |
| 7 x 1.5 | 7 | 1.5 | 13.4 | Quote |
| 10 x 1.5 | 10 | 1.5 | 16.3 | Quote |
| 12 x 1.5 | 12 | 1.5 | 16.8 | Quote |
| 16 x 1.5 | 16 | 1.5 | 18.3 | Quote |
| 19 x 1.5 | 19 | 1.5 | 19.3 | Quote |
| 24 x 1.5 | 24 | 1.5 | 22.2 | Quote |
| 7 x 2.5 | 7 | 2.5 | 14.9 | Quote |
| 10 x 2.5 | 10 | 2.5 | 18.3 | Quote |
| 12 x 2.5 | 12 | 2.5 | 18.9 | Quote |
| 16 x 2.5 | 16 | 2.5 | 20.8 | Quote |
| 19 x 2.5 | 19 | 2.5 | 21.8 | Quote |
| 24 x 2.5 | 24 | 2.5 | 25.2 | Quote |
