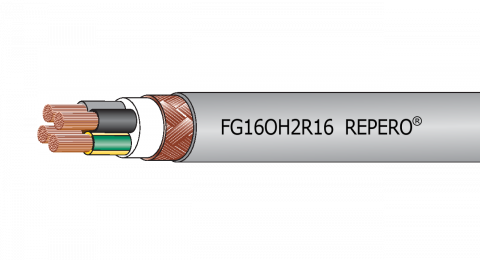

Baldassari FG16OH2R16 0,6/1 kV Repero®
- Available in 27 sizes. See the size table
- Custom lengths cut to order
- Delivered across Southeast Asia
- Need help choosing? Call +65 6747 3336
About Baldassari FG16OH2R16 0,6/1 kV Repero®
FG16OH2R16 0,6/1 kV Repero® — national cable, cpr low voltage cables.
Technical specification
| Nominal Voltage Uo / U | 0,6/1 kV |
|---|---|
| Maximum Working Temperature | 90 °C |
| Maximum Short Circuit Temperature | 250 °C up to 240 mm2, over 220 °C |
Manufactured in Italy by Bruno Baldassari & F.lli. Supplied and held in Singapore for delivery across ASEAN by Everwell Cables & Electrical (S.E.A.) Pte Ltd. Contact us for cross-section, drum length, CPR declaration and lead time.
FG16OH2R16 is an Italian CEI-UNEL designation: F = flexible class 5 copper conductor, G16 = rubber (EPR/HEPR) insulation, CEI-UNEL compound grade 16, O = cores laid up under a filler (multi-core), H2 = copper braid screen, R16 = PVC sheath, grade 16. In the size column, 3G 2.5 means three 2.5 mm² cores including a green/yellow earth; 3 x 2.5 means three cores with no earth.
| Size | Cores | mm² | Ø mm | Request a quote |
|---|---|---|---|---|
| 2 x 1.5 | 2 | 1.5 | 11 | Quote |
| 2 x 2.5 | 2 | 2.5 | 12 | Quote |
| 2 x 4 | 2 | 4 | 13.1 | Quote |
| 2 x 6 | 2 | 6 | 14.4 | Quote |
| 2 x 10 | 2 | 10 | 16.7 | Quote |
| 2 x 16 | 2 | 16 | 18.7 | Quote |
| 2 x 25 | 2 | 25 | 22.5 | Quote |
| 2 x 35 | 2 | 35 | 24.9 | Quote |
| 3 x 1.5 | 3 | 1.5 | 11.5 | Quote |
| 3 x 2.5 | 3 | 2.5 | 12.6 | Quote |
| 3 x 4 | 3 | 4 | 13.7 | Quote |
| 3 x 6 | 3 | 6 | 15.1 | Quote |
| 3 x 10 | 3 | 10 | 17.5 | Quote |
| 3 x 16 | 3 | 16 | 19.7 | Quote |
| 3 x 25 | 3 | 25 | 23.7 | Quote |
| 4 x 1.5 | 4 | 1.5 | 12.2 | Quote |
| 4 x 2.5 | 4 | 2.5 | 13.7 | Quote |
| 4 x 4 | 4 | 4 | 15 | Quote |
| 4 x 6 | 4 | 6 | 16.4 | Quote |
| 4 x 10 | 4 | 10 | 19.2 | Quote |
| 4 x 16 | 4 | 16 | 21.7 | Quote |
| 5 x 1.5 | 5 | 1.5 | 13.1 | Quote |
| 5 x 2.5 | 5 | 2.5 | 14.7 | Quote |
| 5 x 4 | 5 | 4 | 16.3 | Quote |
| 5 x 6 | 5 | 6 | 17.9 | Quote |
| 5 x 10 | 5 | 10 | 20.7 | Quote |
| 5 x 16 | 5 | 16 | 23.6 | Quote |
