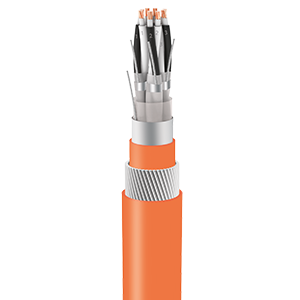

RE-2X(St)HSWAH-PIMF..CI — Üntel Kablo cable for instrumentation applications.
Dimensions and electrical data
| Conductor size (Class 2) | nom. | mm2 | 0.5 | 0.75 | 1 | 1.3 | 1.5 | 2.5 |
|---|---|---|---|---|---|---|---|---|
| Conductor resistance | max. | Ω/km | 36.7 | 25 | 18.5 | 14.2 | 12.3 | 7.6 |
| Insulation resistance | min. | MΩxkm | 5000 | |||||
| L/R ratio | max. | µH/Ω | 25 | 25 | 25 | 40 | 40 | 60 |
| (*) At 20 °C |
| Cross Sections (mm2) | Nominal Overall Diameter (mm) | Approximate Weight (kg/km) |
|---|---|---|
| 2x2x0,5 | 16.5 | 421 |
| 4x2x0,5 | 18.7 | 533 |
| 8x2x0,5 | 24.4 | 917 |
| 10x2x0,5 | 27.2 | 1072 |
| 12x2x0,5 | 28 | 1150 |
| 16x2x0,5 | 30.7 | 1354 |
| 20x2x0,5 | 35 | 1805 |
| 24x2x0,5 | 38.3 | 2065 |
| 2x2x0,75 | 17.5 | 466 |
| 4x2x0,75 | 19.6 | 582 |
| 5x2x0,75 | 21.9 | 790 |
| 6x2x0,75 | 23.4 | 868 |
| 8x2x0,75 | 25.9 | 1020 |
| 10x2x0,75 | 28.9 | 1190 |
| 12x2x0,75 | 29.7 | 1280 |
| 16x2x0,75 | 33.3 | 1697 |
| 20x2x0,75 | 37.1 | 2025 |
| 24x2x0,75 | 40.7 | 2314 |
| 2x2x1 | 17.8 | 483 |
| 4x2x1 | 20.7 | 725 |
| 5x2x1 | 22.4 | 828 |
| 6x2x1 | 24 | 913 |
| 8x2x1 | 26.5 | 1073 |
| 10x2x1 | 29.6 | 1264 |
| 12x2x1 | 30.5 | 1364 |
| 16x2x1 | 34.6 | 1860 |
| 20x2x1 | 38.1 | 2162 |
| 24x2x1 | 41.8 | 2471 |
| 2x2x1,3 | 18.8 | 526 |
| 4x2x1,3 | 22.1 | 808 |
| 5x2x1,3 | 23.7 | 910 |
| 6x2x1,3 | 25.6 | 1015 |
| 8x2x1,3 | 28.1 | 1190 |
| 10x2x1,3 | 32.2 | 1590 |
| 12x2x1,3 | 33.3 | 1717 |
| 16x2x1,3 | 37 | 2090 |
| 20x2x1,3 | 40.8 | 2427 |
| 24x2x1,3 | 45.6 | 3096 |
| 2x2x1,5 | 18.9 | 534 |
| 4x2x1,5 | 22.3 | 825 |
| 5x2x1,5 | 23.9 | 930 |
| 6x2x1,5 | 25.8 | 1050 |
| 8x2x1,5 | 28.4 | 1233 |
| 10x2x1,5 | 32.7 | 1647 |
| 12x2x1,5 | 33.7 | 1783 |
| 16x2x1,5 | 37.4 | 2153 |
| 20x2x1,5 | 41.2 | 2522 |
| 24x2x1,5 | 46.5 | 3257 |
| 2x2x2,5 | 22.4 | 790 |
| 4x2x2,5 | 25.6 | 1035 |
| 5x2x2,5 | 27.6 | 1178 |
| 6x2x2,5 | 29.9 | 1337 |
| 8x2x2,5 | 34 | 1800 |
| 10x2x2,5 | 38.5 | 2154 |
| 12x2x2,5 | 39.6 | 2336 |
| 16x2x2,5 | 44.6 | 3106 |
| 20x2x2,5 | 49.7 | 3690 |
| 24x2x2,5 | 55.9 | 4740 |
