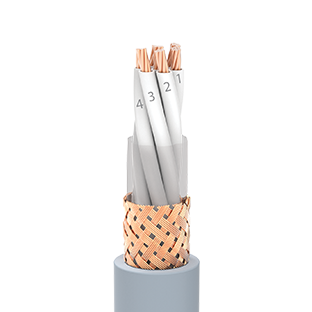

Üntel FM2XCH MULTI CORE
Ships within 3–5 business days, subject to prior ex-stock sales.
Technical support available
Custom lengths available on request
SS & IEC certified products
FM2XCH MULTI CORE — Üntel Kablo cable for marine applications.
Dimensions and electrical data
| Cross Section (m m² ) | Overall Diameter (mm) | Approximate Weight (kg / km) | Min. Bending Radius Fixed Installed (mm) | Max Resistance of Conductors at 20°C (ohm / km) | Current Carrying Capacity at 45°C (A) |
|---|---|---|---|---|---|
| 2×0,5 | 6.3 | 60 | 38 | 40.4 | 11 |
| 3×0,5 | 6.6 | 68 | 40 | 40.4 | 9 |
| 7×0,5 | 8 | 108 | 48 | 40.4 | 7 |
| 10×0,5 | 9.9 | 149 | 60 | 40.4 | 6 |
| 12×0,5 | 10.2 | 164 | 62 | 40.4 | 6 |
| 16×0,5 | 11.3 | 205 | 68 | 40.4 | 5 |
| 19×0,5 | 11.8 | 230 | 71 | 40.4 | 5 |
| 24×0,5 | 14.1 | 317 | 85 | 40.4 | 5 |
| 30×0,5 | 14.8 | 365 | 89 | 40.4 | 4 |
| 36×0,5 | 15.8 | 412 | 95 | 40.4 | 4 |
| 2×0,75 | 7.1 | 74 | 43 | 26 | 13 |
| 3×0,75 | 7.5 | 88 | 45 | 26 | 11 |
| 4×0,75 | 8 | 102 | 48 | 26 | 11 |
| 5×0,75 | 8.9 | 125 | 54 | 26 | 9 |
| 7×0,75 | 9.4 | 147 | 57 | 26 | 8 |
| 10×0,75 | 11.7 | 205 | 71 | 26 | 7 |
| 12×0,75 | 12.1 | 225 | 73 | 26 | 7 |
| 16×0,75 | 13.9 | 318 | 84 | 26 | 6 |
| 19×0,75 | 14.4 | 352 | 87 | 26 | 6 |
| 24×0,75 | 16.7 | 438 | 101 | 26 | 6 |
| 30×0,75 | 17.6 | 509 | 106 | 26 | 5 |
| 36×0,75 | 18.8 | 587 | 113 | 26 | 5 |
| 2×1 | 7.4 | 81 | 45 | 19.2 | 16 |
| 3×1 | 7.8 | 98 | 47 | 19.2 | 13 |
| 4×1 | 8.6 | 120 | 52 | 19.2 | 13 |
| 5×1 | 9.3 | 140 | 56 | 19.2 | 11 |
| 7×1 | 9.9 | 170 | 60 | 19.2 | 10 |
| 10×1 | 12.3 | 234 | 74 | 19.2 | 9 |
| 12×1 | 12.7 | 265 | 77 | 19.2 | 8 |
| 16×1 | 14.5 | 364 | 87 | 19.2 | 8 |
| 19×1 | 15.2 | 410 | 92 | 19.2 | 7 |
| 24×1 | 17.6 | 506 | 106 | 19.2 | 7 |
| 30×1 | 18.5 | 592 | 111 | 19.2 | 6 |
| 36×1 | 20.1 | 696 | 121 | 19.2 | 6 |
| 2×1,5 | 8.7 | 110 | 53 | 12.8 | 20 |
| 3×1,5 | 9.1 | 132 | 55 | 12.8 | 17 |
| 4×1,5 | 9.8 | 155 | 59 | 12.8 | 17 |
| 5×1,5 | 10.6 | 180 | 64 | 12.8 | 14 |
| 7×1,5 | 11.6 | 234 | 70 | 12.8 | 12 |
| 10×1,5 | 15 | 360 | 90 | 12.8 | 11 |
| 12×1,5 | 15.4 | 400 | 93 | 12.8 | 11 |
| 16×1,5 | 17.2 | 500 | 104 | 12.8 | 10 |
| 19×1,5 | 17.9 | 565 | 108 | 12.8 | 9 |
| 24×1,5 | 20.9 | 710 | 126 | 12.8 | 9 |
| 30×1,5 | 22.2 | 840 | 134 | 12.8 | 8 |
| 36×1,5 | 23.8 | 981 | 143 | 12.8 | 7 |
| 2×2,5 | 9.6 | 139 | 58 | 7.86 | 27 |
| 3×2,5 | 10.1 | 173 | 61 | 7.86 | 22 |
| 4×2,5 | 10.9 | 210 | 66 | 7.86 | 22 |
| 5×2,5 | 12.1 | 252 | 73 | 7.86 | 18 |
| 7×2,5 | 13 | 321 | 78 | 7.86 | 17 |
| 10×2,5 | 17 | 495 | 102 | 7.86 | 15 |
| 12×2,5 | 17.5 | 555 | 105 | 7.86 | 14 |
| 16×2,5 | 19.5 | 705 | 117 | 7.86 | 13 |
| 19×2,5 | 20.4 | 806 | 123 | 7.86 | 12 |
| 24×2,5 | 23.8 | 1000 | 143 | 7.86 | 11 |
| 30×2,5 | 25.3 | 1210 | 152 | 7.86 | 10 |
| 36×2,5 | 27.4 | 1425 | 165 | 7.86 | 10 |
Manufactured by Üntel Kablo. Supplied and held in Singapore for delivery across ASEAN by Everwell Cables & Electrical (S.E.A.) Pte Ltd. Contact us for cross-section, drum length, certification and lead time.
