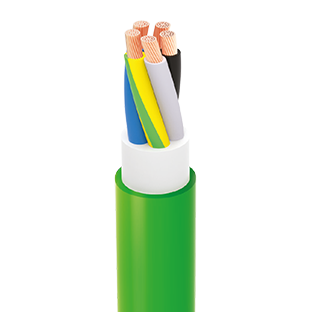

Üntel FG7M1 / FG7OM1
Ships within 3–5 business days, subject to prior ex-stock sales.
Technical support available
Custom lengths available on request
SS & IEC certified products
FG7M1 / FG7OM1 — Üntel Kablo cable for industrial applications.
Dimensions and electrical data
| Cross Section (mm²) | Nominal Overall Diameter (mm) | Approximate Weight | (kg / km) | Min.Bending Radius | (fixed installation) (mm) | Max. Resistance of Conductors | at 20°C (ohm / km) |
|---|---|---|---|---|
| 1×1,5 | 5,80 | 48 | 23 | 13,30 |
| 1×2,5 | 6,20 | 60 | 25 | 7,98 |
| 1×10 | 8,30 | 141 | 33 | 1,91 |
| 1×16 | 9,30 | 195 | 37 | 1,21 |
| 1×25 | 11,40 | 295 | 46 | 0,78 |
| 1×35 | 12,30 | 385 | 49 | 0,554 |
| 1×50 | 14,00 | 522 | 56 | 0,386 |
| 1×70 | 16,30 | 743 | 65 | 0,272 |
| 1×95 | 17,90 | 942 | 72 | 0,206 |
| 1×120 | 20,00 | 1196 | 80 | 0,161 |
| 1×150 | 22,00 | 1480 | 88 | 0,129 |
| 1×185 | 24,30 | 1785 | 97 | 0,106 |
| 1×240 | 27,60 | 2381 | 110 | 0,0801 |
| 1×300 | 30,40 | 2926 | 122 | 0,0641 |
| 1×400 | 35,70 | 3850 | 143 | 0,0486 |
| 1×500 | 38,80 | 5055 | 155 | 0,0384 |
| 2×1,5 | 9,50 | 125 | 38 | 13,30 |
| 2×2,5 | 10,40 | 160 | 42 | 7,98 |
| 2×4 | 11,40 | 203 | 46 | 4,95 |
| 2×6 | 12,50 | 260 | 50 | 3,30 |
| 2×10 | 14,70 | 380 | 59 | 1,91 |
| 2×16 | 16,70 | 530 | 67 | 1,21 |
| 2×25 | 22,80 | 920 | 91 | 0,78 |
| 2×35 | 24,60 | 1157 | 98 | 0,554 |
| 2×50 | 28,20 | 1560 | 113 | 0,386 |
| 2×70 | 33,00 | 2201 | 132 | 0,272 |
| 3×1,5 | 10,00 | 142 | 40 | 13,30 |
| 3×2,5 | 11,00 | 185 | 44 | 7,98 |
| 3×4 | 12,00 | 245 | 48 | 4,95 |
| 3×6 | 13,20 | 315 | 53 | 3,3 |
| 3×10 | 15,60 | 475 | 62 | 1,91 |
| 3×16 | 17,80 | 675 | 71 | 1,21 |
| 3×25 | 24,20 | 1142 | 97 | 0,780 |
| 3×35 | 26,10 | 1461 | 104 | 0,554 |
| 3×50 | 30,00 | 1983 | 120 | 0,386 |
| 3×70 | 35,30 | 2831 | 141 | 0,272 |
| 3×95 | 39,00 | 3575 | 156 | 0,206 |
| 3×120 | 43,90 | 4565 | 176 | 0,161 |
| 3×150 | 47,90 | 5570 | 192 | 0,129 |
| 3×185 | 53,70 | 6840 | 215 | 0,106 |
| 3×240 | 60,80 | 9035 | 243 | 0,0801 |
| 3×300 | 66,80 | 11046 | 267 | 0,0641 |
| 3×16+10 | 21,30 | 897 | 85 | 1,21 |
| 3×25+16 | 26,20 | 1350 | 105 | 0,780 |
| 3×35+16 | 28,50 | 1805 | 114 | 0,554 |
| 3×50+25 | 33,30 | 2366 | 133 | 0,386 |
| 3×70+35 | 38,60 | 3320 | 154 | 0,272 |
| 3×95+50 | 43,10 | 4260 | 172 | 0,206 |
| 3×120+70 | 48,10 | 5437 | 192 | 0,161 |
| 3×150+70 | 52,70 | 6561 | 211 | 0,129 |
| 3×185+95 | 59,00 | 8096 | 236 | 0,106 |
| 3×240+120 | 66,80 | 10650 | 267 | 0,0801 |
| 3×300+150 | 74,00 | 13145 | 296 | 0,0641 |
| 4×1,5 | 10,80 | 166 | 43 | 13,30 |
| 4×2,5 | 11,90 | 220 | 48 | 7,98 |
| 4×4 | 13,10 | 295 | 52 | 4,95 |
| 4×6 | 14,40 | 385 | 58 | 3,30 |
| 4×10 | 17,10 | 585 | 68 | 1,91 |
| 4×16 | 19,50 | 845 | 78 | 1,21 |
| 4×25 | 26,50 | 1415 | 106 | 0,780 |
| 4×35 | 28,80 | 1836 | 115 | 0,554 |
| 4×50 | 33,60 | 2540 | 134 | 0,386 |
| 4×70 | 39,00 | 3575 | 156 | 0,272 |
| 5×1,5 | 11,60 | 197 | 46 | 13,30 |
| 5×2,5 | 12,90 | 265 | 52 | 7,98 |
| 5×4 | 14,20 | 355 | 57 | 4,95 |
| 5×6 | 15,70 | 470 | 63 | 3,30 |
| 5×10 | 18,70 | 716 | 75 | 1,91 |
| 5×16 | 21,40 | 1031 | 86 | 1,21 |
| 5×25 | 29,20 | 1735 | 117 | 0,780 |
| 5×35 | 32,30 | 2301 | 129 | 0,554 |
| 5×50 | 37,30 | 3145 | 149 | 0,386 |
| 5×70 | 43,80 | 4485 | 175 | 0,272 |
| 7×1,5 | 12,50 | 235 | 50 | 13,30 |
| 7×2,5 | 13,80 | 317 | 55 | 7,98 |
| 10×1,5 | 15,40 | 320 | 62 | 13,30 |
| 10×2,5 | 17,10 | 435 | 68 | 7,98 |
| 12×1,5 | 15,80 | 360 | 63 | 13,30 |
| 12×2,5 | 17,70 | 495 | 71 | 7,98 |
| 16×1,5 | 17,40 | 450 | 70 | 13,30 |
| 16×2,5 | 19,50 | 625 | 78 | 7,98 |
| 19×1,5 | 18,30 | 503 | 73 | 13,30 |
| 19×2,5 | 20,50 | 706 | 82 | 7,98 |
| 24×1,5 | 21,20 | 626 | 85 | 13,30 |
| 24×2,5 | 23,80 | 882 | 95 | 7,98 |
Manufactured by Üntel Kablo. Supplied and held in Singapore for delivery across ASEAN by Everwell Cables & Electrical (S.E.A.) Pte Ltd. Contact us for cross-section, drum length, certification and lead time.
