Üntel EPR/CSPE
Ships within 3–5 business days, subject to prior ex-stock sales.
Technical support available
Custom lengths available on request
SS & IEC certified products

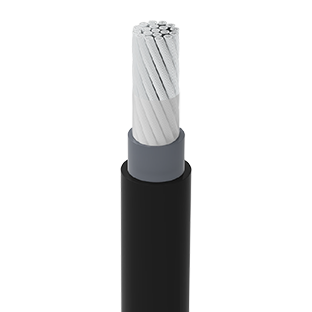

EPR/CSPE — Üntel Kablo cable for industrial applications.
Dimensions and electrical data
| Cross Section (mm²) | Nominal Overall Diameter (mm) | Approximate Weight | (kg / km) | Min.Bending Radius | (free movement) (mm) | Max. Resistance of Conductors | at 20°C (ohm / km) |
|---|---|---|---|---|
| 1×10 | 11,50 | 215 | 1,95 | 35 |
| 1×16 | 13,00 | 296 | 1,24 | 52 |
| 1×50 | 17,80 | 674 | 0,393 | 71 |
| 1×70 | 19,70 | 880 | 0,277 | 79 |
| 1×95 | 22,10 | 1130 | 0,21 | 88 |
Manufactured by Üntel Kablo. Supplied and held in Singapore for delivery across ASEAN by Everwell Cables & Electrical (S.E.A.) Pte Ltd. Contact us for cross-section, drum length, certification and lead time.
